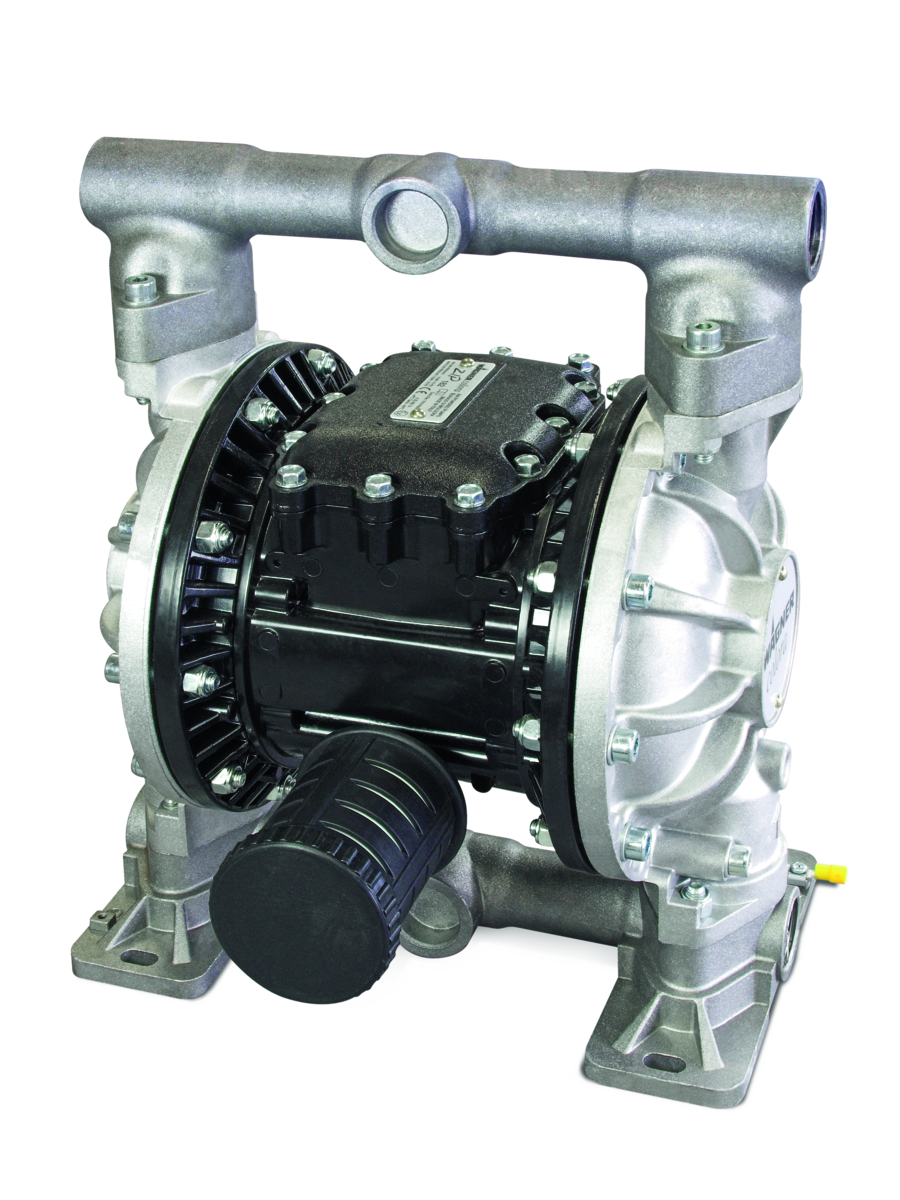

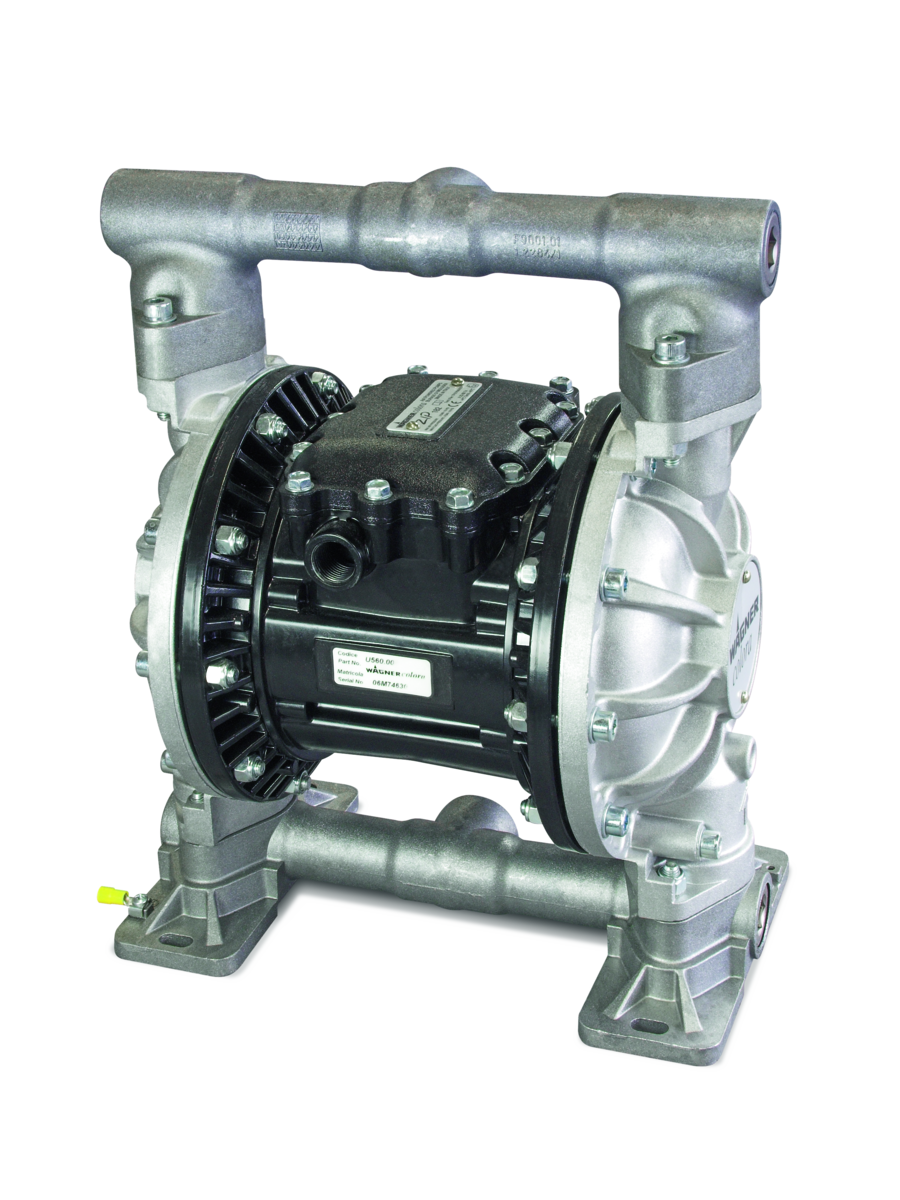

Wagner Zip 182 Diaphragm Pump

£1,199.00

Versatile low-pressure diaphragm pump for industrial coating applications.



This product comes factory spec, a bare unit without any guns or hoses attached. For a complete set up, enquire with us directly.

Available on back-order

SKU: U560.ATSS1 Category: Tag: Brand:

Description

The Wagner Zip 182 (part no. U560.ATSS1) is a low-pressure double diaphragm pump that excels at precise material transport and circulating systems thanks to its high flow rate. Suitable for both manual and automated processes, Wagner labels it “Universal” thanks to its ability to handle a wide range of materials, as well as its long service life. Its uses within surface coating production are varied, and include anything from feeding paint supply systems to the disposal of liquid waste and the filling/emptying of tanks, drums, and containers.





FAQs



What is the Wagner Zip 182 diaphragm pump used for?



The Zip 182 is a pneumatic double diaphragm pump for moving large volumes of paints and lacquers. It supplies and circulates material around finishing systems and fills or empties drums, tanks and containers. It delivers up to 182L/min at up to 8 bar, suiting busy production lines such as furniture, kitchen manufacturing, joinery, window factories, steel processing and vehicle construction.





What type of material can it process?



The pump can handle both water-dilutable and solvent-based paints, as well as lacquers, primers, emulsions, UV lacquers, 2K products, and epoxy, polyurethane, and phenolic lacquers.





Is there a complete list of spares and parts for the pump?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Check filters, hoses, and couplings daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/zip-182/

Technical specs

Weight12.5 kg
Processable Materials

Solvent-borne, abrasive, oils, shear sensitive, sensitive to moisture

Material Wetted Parts

Aluminium, Stainless Steel, PTFE (polytetrafluoroethylene)

Material Outlet

F G 1”

Compressed Air Connection

M G ½”

Air Inlet Pressure

1-8 bar

Max. Material Pressure

8 bar

Volumetric Flow per Double Stroke

710cm³

Volumetric Flow per Minute

180L/min

Sound Level at 6 bar Pressure

78 dB(A)

Transmission Ratio (:1)

1:1

Material Temperature

4-90 °C
