Wagner Leopard 35-150 Piston Pump

Original price was: £3,299.00.Current price is: £2,799.00.

High-volume piston pump for large-scale, heavy-duty production lines.



This product comes factory spec, a bare unit without any guns or hoses attached. For a complete set–up, enquire with us directly via the Contact Us page.



Click to view other Wagner products or our full range of Spray Units.

SKU: 2329484 Category: Tags: , Brand:

Description

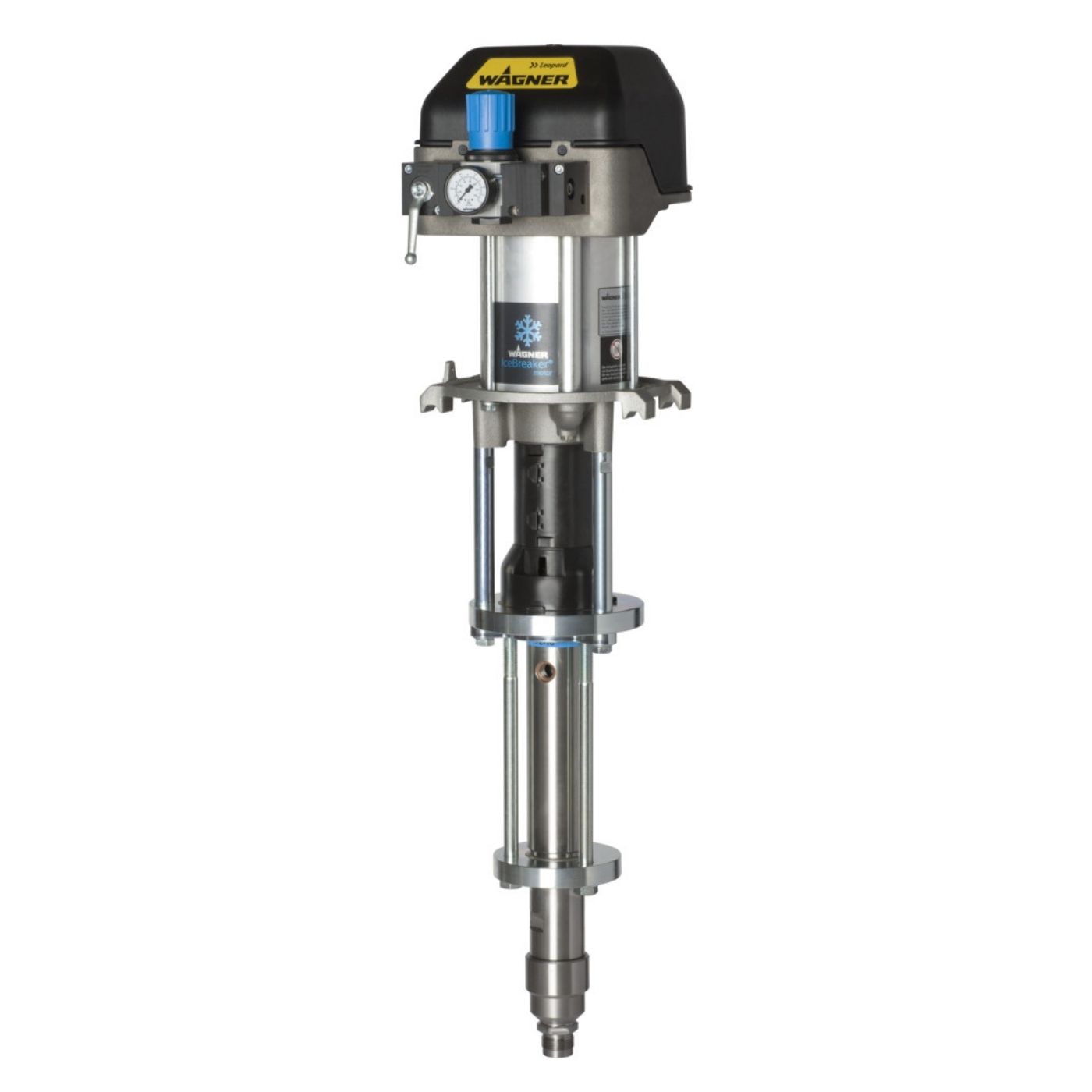

The Wagner Leopard 35-150 (part no. 2329484) is a heavy-duty high-pressure piston pump that offers a greater maximum working pressure, higher flow rate and more robust performance than the 35-70 or Puma 28-40. It combines a constantly uniform material flow with low pulsation to maximise surface finishing quality, and IceBreaker technology prevents icing throughout continuous use. The stainless-steel body processes both water-based and solvent-based materials, saving costs and increasing production efficiency. The Wagner Leopard suits thicker protective coatings and multi-gun setups in larger, high-volume productions such as metal finishing, transport, or construction manufacturing.





What is the Wagner Leopard 35-150 piston pump used for?



The pump runs in both airless and air-assisted airless setups. It can supply several guns at once and is most effective in applying finishes on wood and metal, as well as protective coatings, demoulding agents, and adhesives.





What type of material can it spray?



It processes water and solvent-based materials such as paints, lacquers, and primers, as well as abrasive and moisture-sensitive materials.





Is there a complete list of spares and parts for the pump?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





What air supply do I need?



The Leopard 35-150 uses 37.3nl of air per double stroke at 6 bar, running at up to 60 strokes per minute. For continuous full-rate spraying, your air supply needs to deliver about 2,250nl/min. Wagner recommends no more than 40 strokes per minute for continuous operation, which requires 1,500nl/min. For lighter, single gun setups, an air supply delivering 1,200-1,600nl/min may be sufficient. Check with us for advice on your setup.





How often does it need servicing?



Check filters and hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/leopard-35-150/

Technical specs

Weight36 kg
Application Area

Metal coating, wood coating, demolding and separating, adhesive bonding

Application Technique

Airless, AirCoat

Processable Materials

Water-borne, solvent-borne, sensitive to moisture

Material Wetted Parts

Stainless steel, Hard chrome, Carbide, PTFE (polytetrafluoroethylene),  PE (polyethylene)

Material Outlet

M M24x1.5

Compressed Air Connection

F G ½”

Air Inlet Pressure

2.5-7.7 bar

Max. Material Pressure

250 bar

Volumetric Flow per Double Stroke

150cm³

Volumetric Flow per Minute

9L/min

Max. Stroke Rate

60 1/min

Sound Level at 6 bar Pressure

78 dB(A)

Max. Allowed Inclination

10°

Transmission Ratio (:1)

35:1

Material pH Value

3.5-9 pH

Material Temperature

5-80 °C

Datasheet downloads
