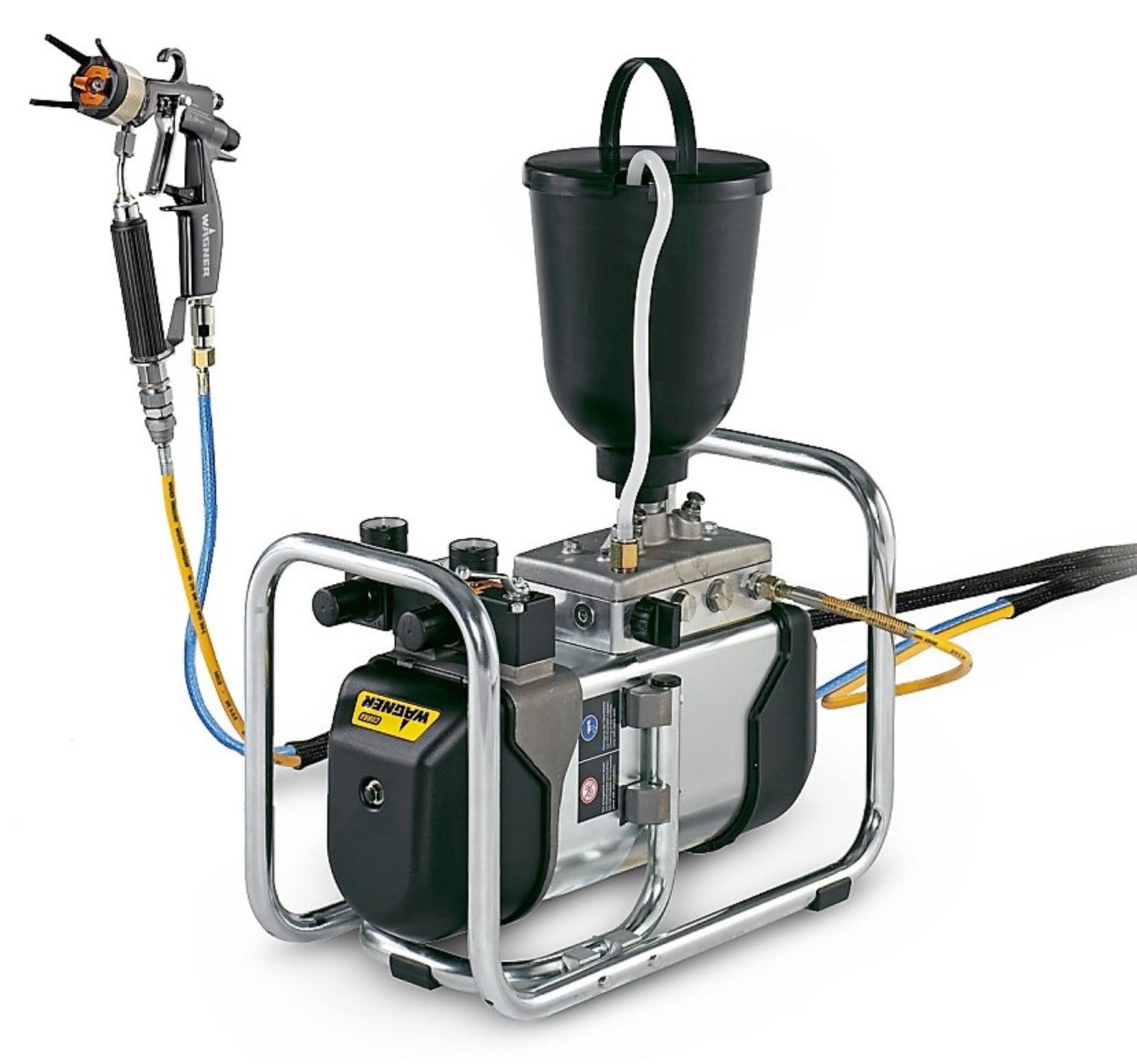

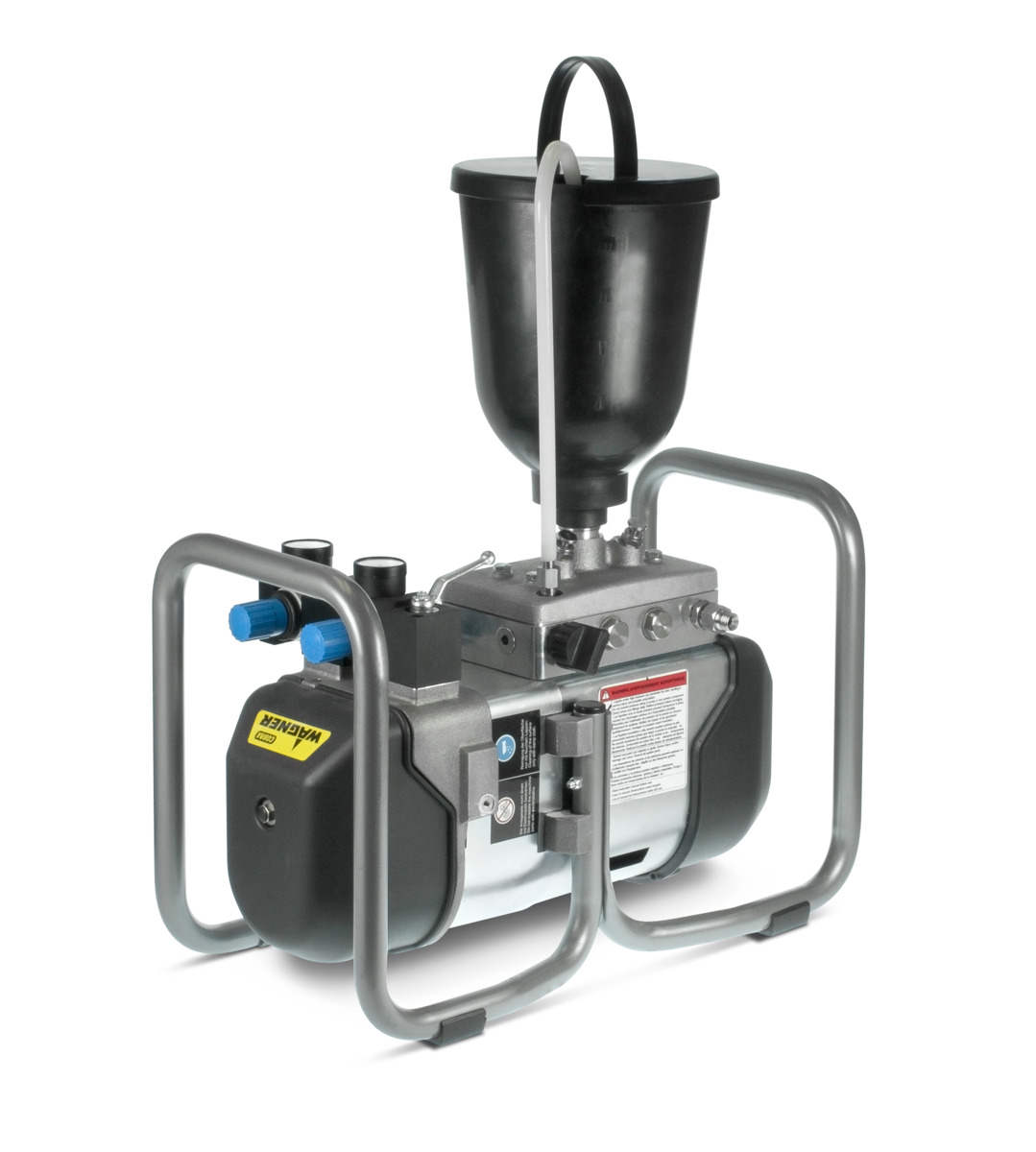

Wagner Cobra 40-10 Spraypack

£3,399.00

High-pressure diaphragm pump for precise industrial coating applications. Pre-assembled with guns and hoses, ready to spray.



This Ready to Spray customisable Spraypack lets you choose your hose length, air cap, and tip size. It also includes a hopper and Wagner GM4700AC manual spray gun, so it arrives ready to spray.



Click to view other Wagner products or our full range of Spray Units.



Product total
Options total
Grand total

Description

The Wagner Cobra 40-10 (pump part no. 2329519) Spraypack is a complete high-pressure pneumatic setup that operates at a performance level comparable to much larger, bulkier piston pumps. Its small-volume fluid section supports rapid colour changes and low solvent use, with a compact design that enables rapid, high-quality finishing. Hermetic seals replace packings throughout the structure, eliminating friction and enhancing reliability. This pump is ideal for applications in reactive coatings such as UV paints or acrylics, moisture-sensitive materials, and abrasive or aggressive substances. It delivers high-quality results in small to medium productions that require multiple colours, sensitive coatings, or low waste.





FAQs



What is the Wagner Cobra 40-10 diaphragm pump used for?



The Cobra 40-10 is a high-pressure diaphragm pump capable of airless and air-assisted airless (AirCoat) spraying at pressures up to 250 bar. It is effective in both a single coating system and complex multicolour applications across metal finishing, protective coating, wood finishing, as well as demoulding and release agents.





What type of material can it process?



The pump can handle both water and solvent-based coatings, as well as abrasive, shear-sensitive, and moisture-sensitive materials. The low-shear, hermetically sealed design lets it process almost all materials within pH range 3.5-9 and 10-80°C.





What does the AirCoat Spraypack include?



In the Cobra 40-10 AirCoat Spraypack, you receive a pump and frame with a high-pressure twin hose set, Wagner GM4700AC spray gun equipped with an air cap and tip, as well as a hopper to feed material.





What pressure and flow rate can the Cobra 40-10 deliver?



It delivers up to 250 bar and 2L/min with a maximum stroke rate of 200/min. Offering a 40:1 transmission ratio and moving 10 cm³ per double stroke of material.





Is there a complete list of spares and parts for the pump?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Check filters and hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/cobra-40-10/

Technical specs

Weight21 kg
Air inlet pressure

2.5-6 bar

Max. material pressure

250 bar

Volumetric flow per double stroke

10 cm³

Volumetric flow per minute

2L/min

Max. stroke rate

200:1/min

Transmission ratio

40:1
