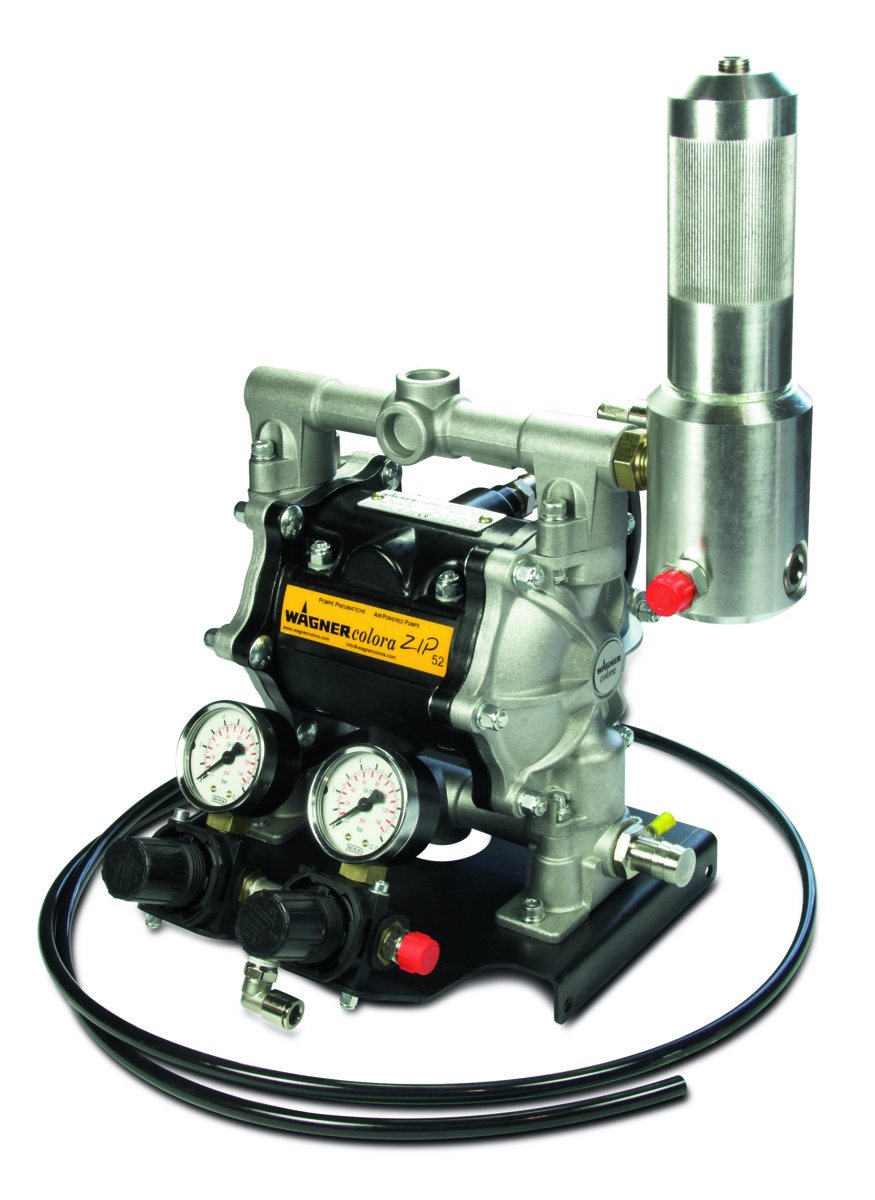

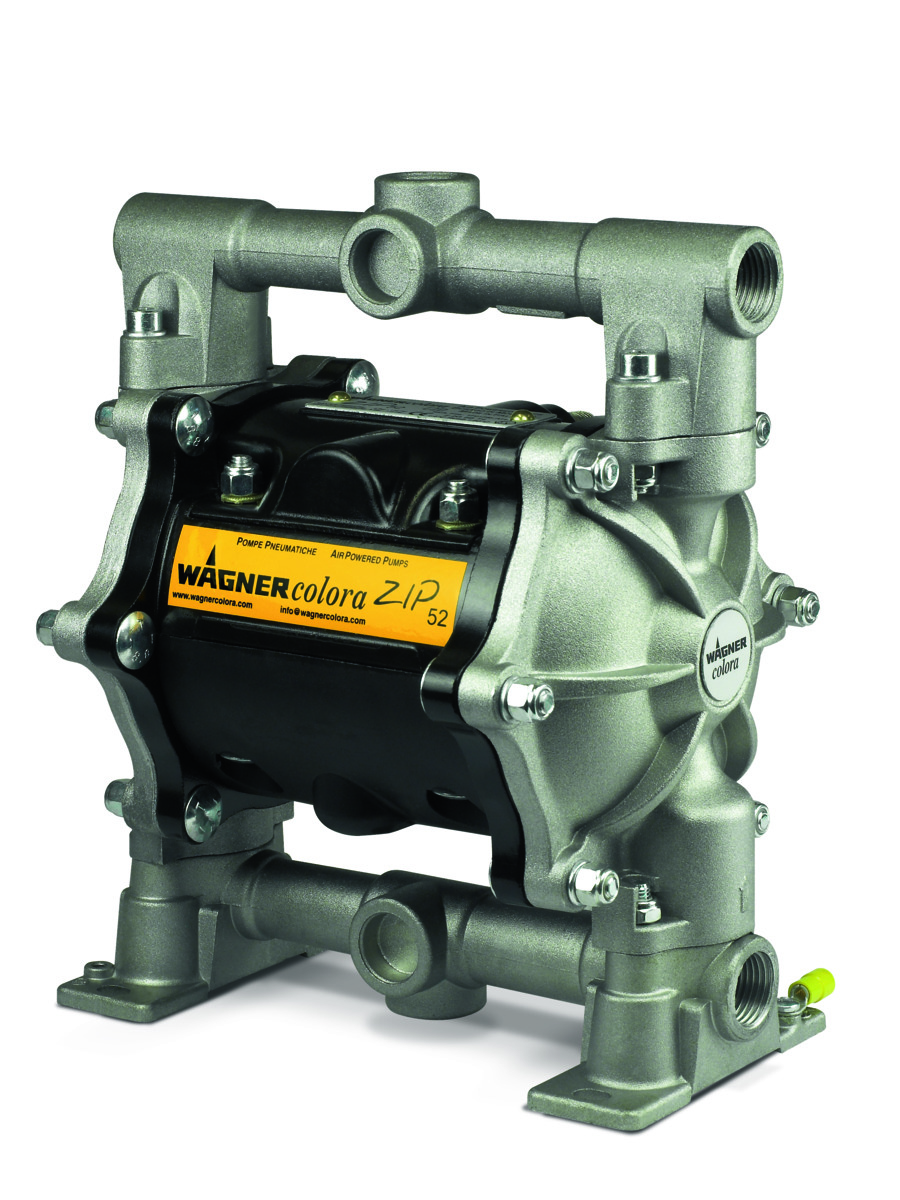

Wagner Zip 52 Diaphragm Pump

£649.00

Versatile low-pressure diaphragm pump for industrial coating applications.



This product comes factory spec, a bare unit without any guns or hoses attached. For a complete set up, see the Zip 52 Spraypack version.



Available on back-order

SKU: U550.ATSS7 Category: Tag: Brand:

Description

The Wagner Zip 52 (part no. U550.ATSS7) is a low-pressure double diaphragm pump that excels at precise material transport and circulating systems thanks to its high flow rate. Suitable for both manual and automated processes, Wagner labels it “Universal” thanks to its ability to handle a wide range of materials, as well as its long service life. Its uses within surface coating production are varied, and include anything from feeding paint supply systems to the disposal of liquid waste and the filling/emptying of tanks, drums, and containers.





FAQs



What is the Wagner Zip 52 diaphragm pump used for?



The Zip 52 is a low-pressure pneumatic double diaphragm pump that specialises in moving material around finishing systems. Its primary function is to supply, circulate, and feed a range of materials between guns and other spray units, as well as filling or emptying drums, tanks, and containers. For a complete spray setup, see the Zip 52 Spraypack.





What type of material can it process?



The pump can handle both water and solvent-based coatings, as well as abrasive, shear-sensitive, and moisture-sensitive materials. Typically, this includes paints and topcoats, enamels, primers, varnishes, wood impregnations, oils, greases, solvents, printing inks, chemicals, and low-viscosity adhesives.





Is there a complete list of spares and parts for the pump?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Check filters and hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/zip52/

Technical specs

Weight3.8 kg
Air inlet pressure

1-8 bar

Max. material pressure

8 bar

Max. intake height

4.9m

Max. solid particle size

2mm

Pump ratio

1:1

Datasheet downloads
