Wagner DP 1-40 Diaphragm Pump

£899.00

Compact double diaphragm pump for bespoke coating applications.



This product comes factory spec, a bare unit without any guns or hoses attached. For a complete set–up, see the DP 1-40 Spraypack version.

SKU: 2414299 Category: Tag: Brand:

Description

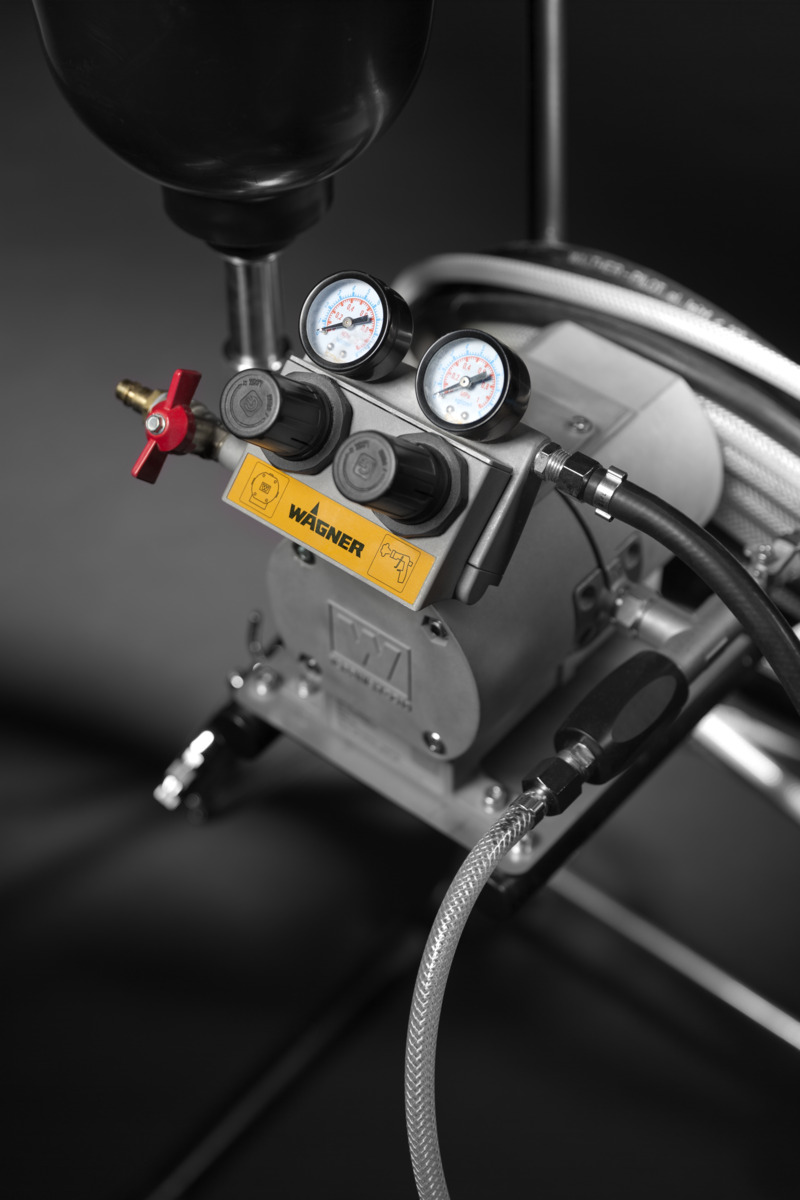

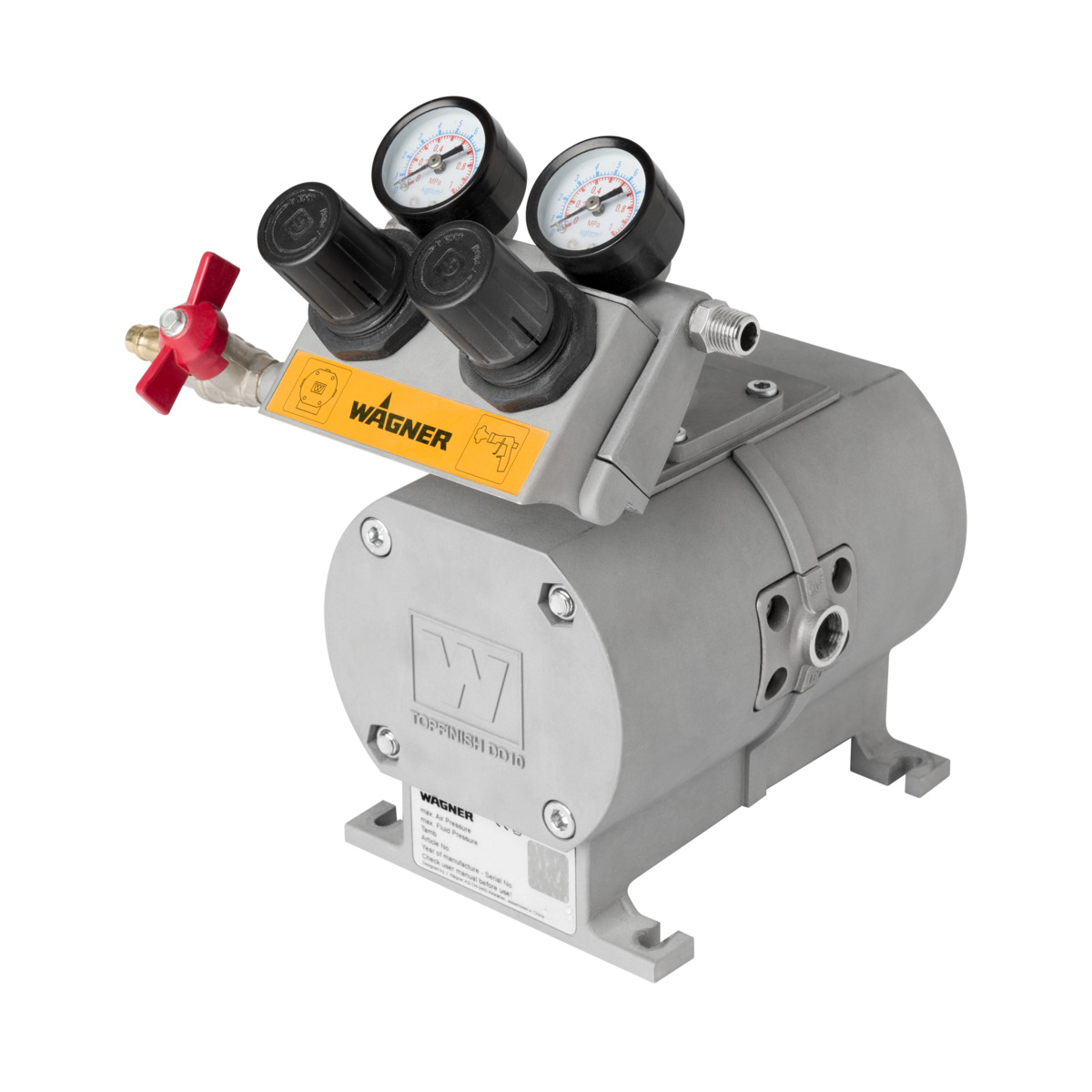

The Wagner DP 1-40 (part no. 2450650) is a pneumatic double-diaphragm pump (previously DD10, part no. 2414299) that delivers completely pulsation-free material flow, ensuring consistent spray and superior finish. It offers a super compact form with ultra-small fluid section volume, optimising solvent and material use and is easy to handle. The design makes it highly flexible, able to handle an exhaustive range of coatings and supports both manual and automatic Airspray guns, as well as 2K systems. Perfect for bespoke production outfits in wood furniture or automotive components.





FAQs



What is the Wagner DP 1-40 diaphragm pump used for?



The DP 1-40 is a pneumatic double diaphragm pump for low-pressure airspray applications, such as coating furniture and plastic parts. It can feed one or two guns directly or be built into mixing and colour change units due to its small fluid section. For a complete setup, see DP 1-40 Spraypack.





What type of material can it process?



The pump can handle both water and solvent-based coatings, as well as abrasive, shear-sensitive, and moisture-sensitive materials. Typically, this includes paints and topcoats, enamels, primers, varnishes, wood impregnations, oils, greases, solvents, printing inks, chemicals, and low-viscosity adhesives.





Is there a complete list of spares and parts for the pump?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Check filters and hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/dp-1-40/

Technical specs

Weight3.2 kg
Application Area

Metal coating, plastic coating, wood coating

Application Technique

Airspray

Processable Materials

Water-borne, solvent-borne, Abrasive, shear sensitive, sensitive to moisture

Material Wetted Parts

Nickel-plated aluminum, Stainless steel,  PA (polyamide)

Dimensions

192 x 165 x 265 mm

Material Outlet

F G 3/8”

Compressed Air Connection

M G 1/4”

Air Inlet Pressure

1.5-8 bar

Max. Material Pressure

8 bar

Volumetric Flow per Double Stroke

40cm³

Volumetric Flow per Minute

10L/min

Sound Level at 6 bar Pressure

62 dB(A)

Transmission Ratio (:1)

1:1

Material Temperature

5-60 °C
