Wagner Unica 3-125 Diaphragm Pump

£3,199.00

High-pressure diaphragm pump for efficient material transfer and industrial spraying.



This product comes factory spec, a bare unit without any guns or hoses attached and features a G ¾” material inlet/outlet port. For a complete set–up, enquire with us directly via the Contact Us page.



Available on back-order

SKU: 2436885 Category: Tag: Brand:

Description

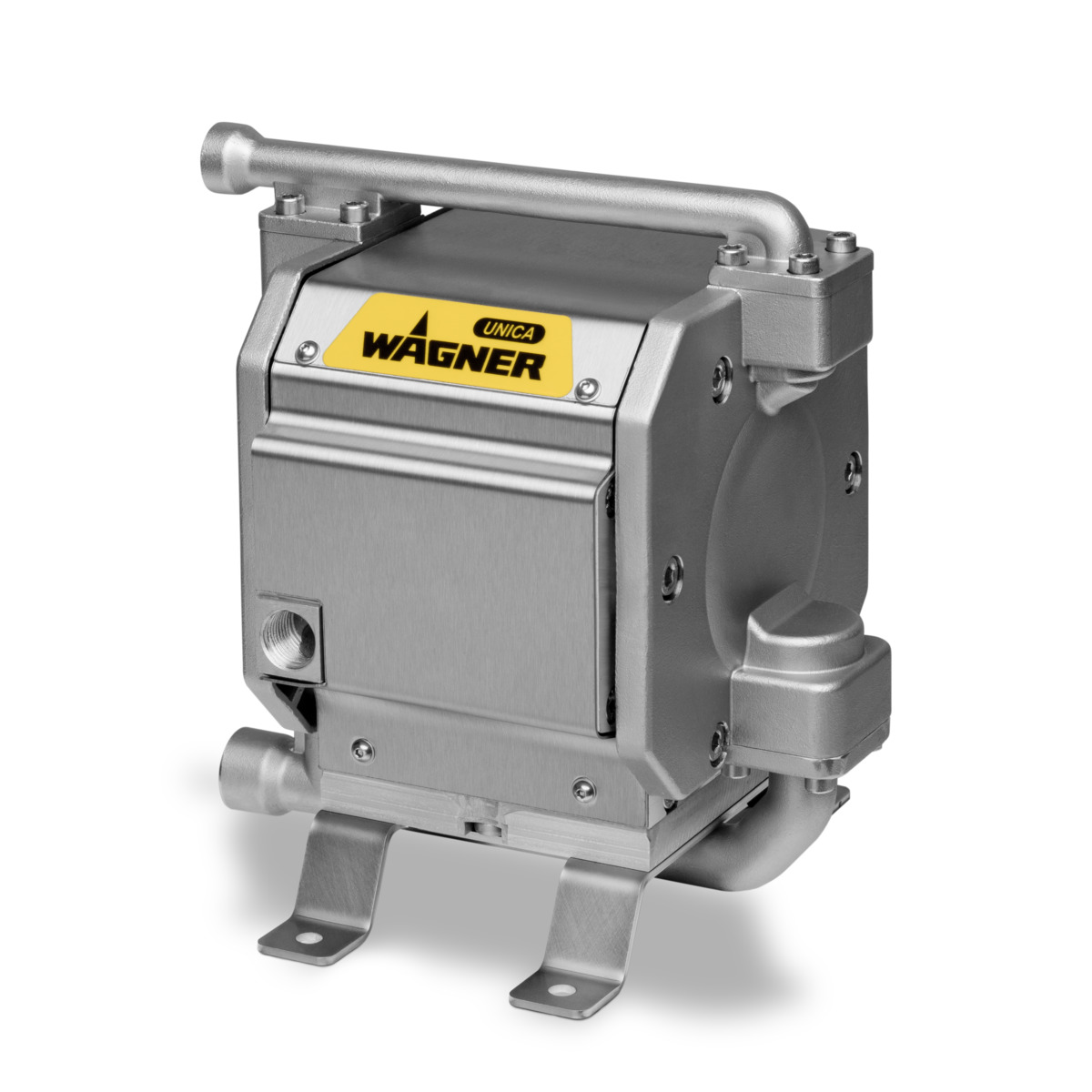

The Wagner Unica 3-125 (part no. 2436885) is a high-pressure diaphragm pump capable of feeding high-viscosity materials with consistent pressure and flow. Its low internal volume and multiple connection options make it effective in supporting recirculation systems or multi-station spray lines with long-distance supply (up to 16 guns), as well as minimising material waste and reducing cleaning time. Robust design that’s easy to maintain and integrate into existing modular spray systems, such as automotive components or paint kitchens.





FAQs



What is the Wagner Unica 3:125 diaphragm pump used for?



The Unica 3-125 is a pneumatic double diaphragm pump with pressure transmission, built for feeding and supplying higher-viscosity materials. It pushes coating through long hose lines in circulation systems, primarily in metal, wood, and plastic finishing.





What is the difference between the Unica 3:125 and low-pressure Zip pumps?



The Unica runs a 3:1 pressure ratio, delivering material at a much higher pressure than low-pressure transfer pumps. It can deliver 5L/min at 15 bar, even with thicker materials, making it suitable for circulation systems that use long hoses and more demanding material.





What type of material can it process?



The pump can handle both water and solvent-based coatings, as well as abrasive and those sensitive to moisture. It features stainless steel and PTFE wetted parts, which helps it cope with more demanding coatings.





Is there a complete list of spares and parts for the pump?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Check filters and hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/unica-3-125/

Technical specs

Weight15 kg
Application Area

Metal coating, plastic coating, wood coating

Application Technique

Airspray

Processable Materials

Water-borne, solvent-borne, Abrasive, sensitive to moisture

Material Wetted Parts

Stainless steel, PTFE (polytetrafluoroethylene)

Material Outlet

F G 3/4”

Compressed Air Connection

F G 1/2”

Air Inlet Pressure

1.5-6 bar

Max. Material Pressure

21 bar
