Description

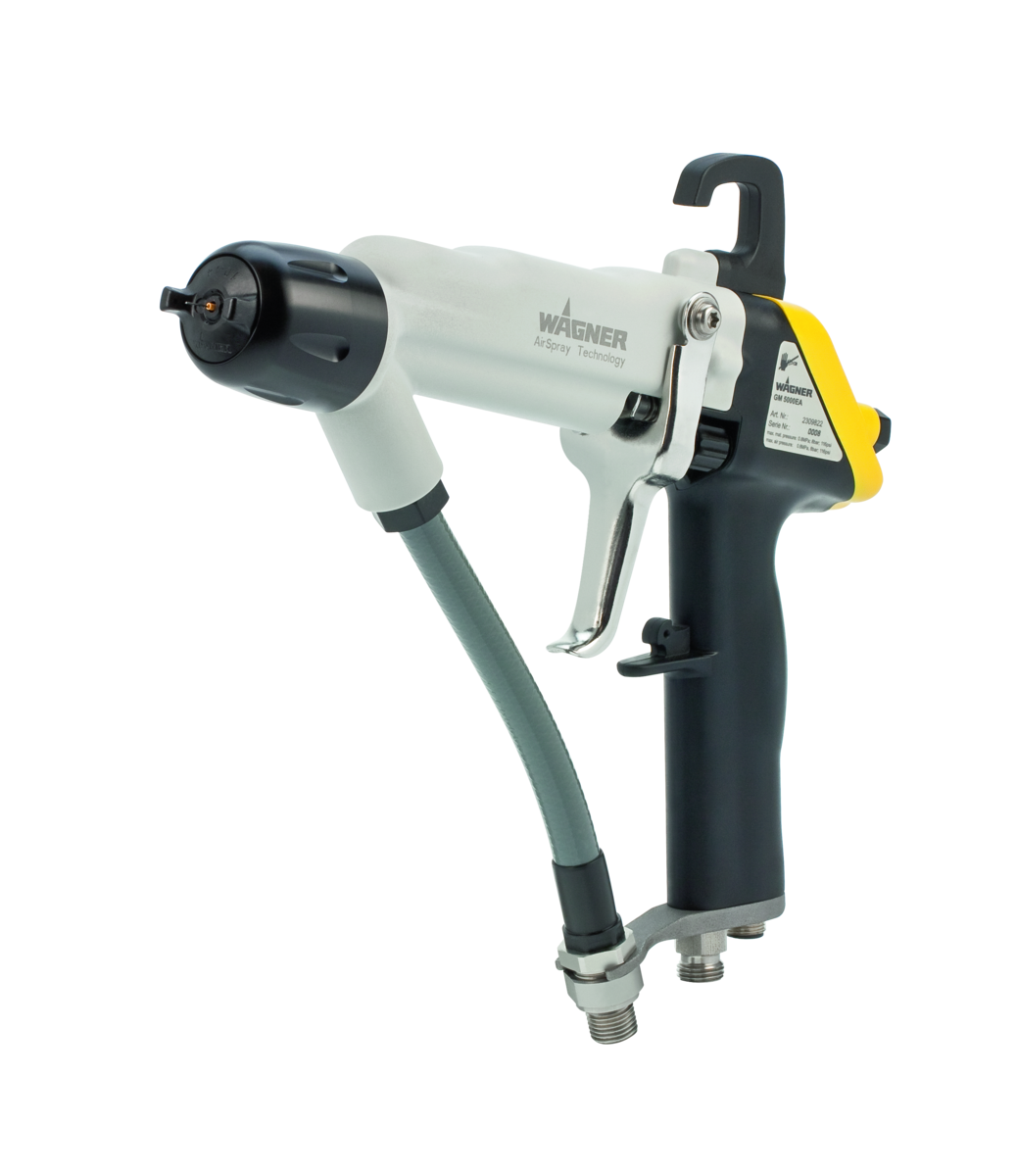

The Wagner GM5000EA (part no. 2309870) electrostatic spray gun is an effective tool for electrostatic coating. It delivers the highest surface quality and outstanding application efficiency, and it pairs the electrostatic charge with traditional air spray atomisation. The built-in high voltage cascade typically saves 30-50% of material compared with conventional coating. Wagner designed the GM5000 for flexible use in harsh environments and with a range of spray materials, because the electrostatic charge attracts paint to all exposed surfaces. It also puts operator safety first. The control unit monitors the gun’s grounding, and the high voltage switches off automatically as soon as the grounding is interrupted. The gun suits mass-production environments and works best with low-conductivity solvent paints.
FAQs
What is the Wagner GM5000EA electrostatic gun used for?
The GM5000EA is a manual electrostatic spray gun that applies mainly solvent-based paints in metal, plastic and wood finishing. It combines conventional air spray atomisation with an electrostatic charge to create a wrap-around effect that covers the surface from all angles and reduces overspray, typically saving 30-50% of material compared with conventional spraying.
What type of material can it spray?
It suits low-conductivity solvent-based paints, such as primers and top coats, including 1K and 2K materials. It also processes abrasive, shear-sensitive and moisture-sensitive materials. For best results, use materials with an electrical resistance above 150 kΩ.
What nozzle size do I need?
Choose a nozzle and air cap to suit your application. Nozzle diameters run from 0.6 to 2 mm. Smaller nozzles suit lower flow and thinner materials, and larger nozzles suit higher flow and thicker materials. Air caps offer flat or round spray options, with a small or wide angle for each. Air caps are paired with nozzle sizes and are not interchangeable. Follow the data table in the manual found in the datasheet downloads section of the product page, or contact us for advice on your setup.
What is the difference between the VM500 & VM5000 Spraypacks?

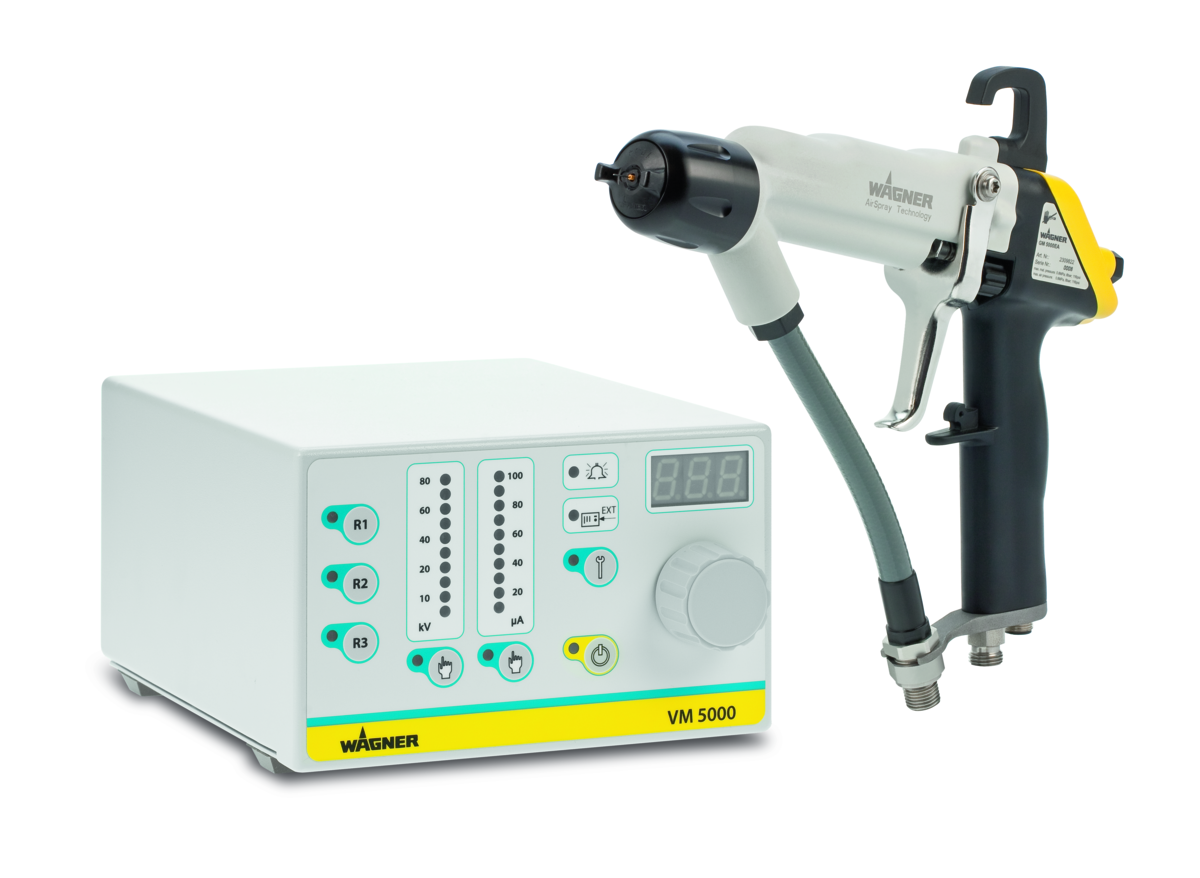

The VM500 controller supplies the electrostatic guns with 70 kV, as well as monitoring and safety shutdown. The VM5000 offers adjustable high voltage and pre-saved recipes for supplying the electrostatics, with much more functionality and control, while also monitoring and operator safety features. Both spraypacks include the controller, cable & 15m hose set, air cap, and tip.
Is there a complete list of spares and parts for the gun?
Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.
How often does it need servicing?
Flush the gun and check hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.
Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/gm-5000ea/
