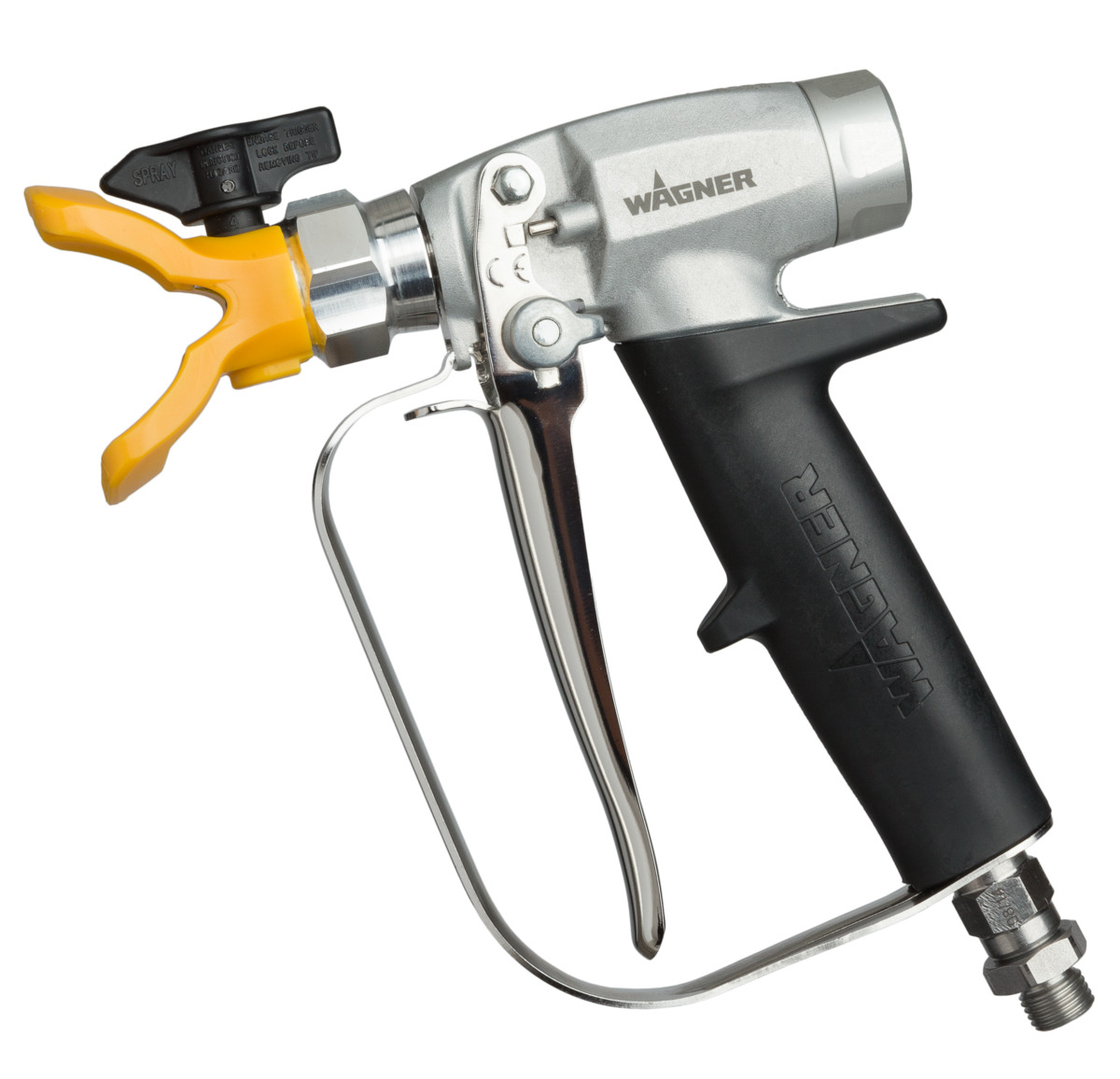

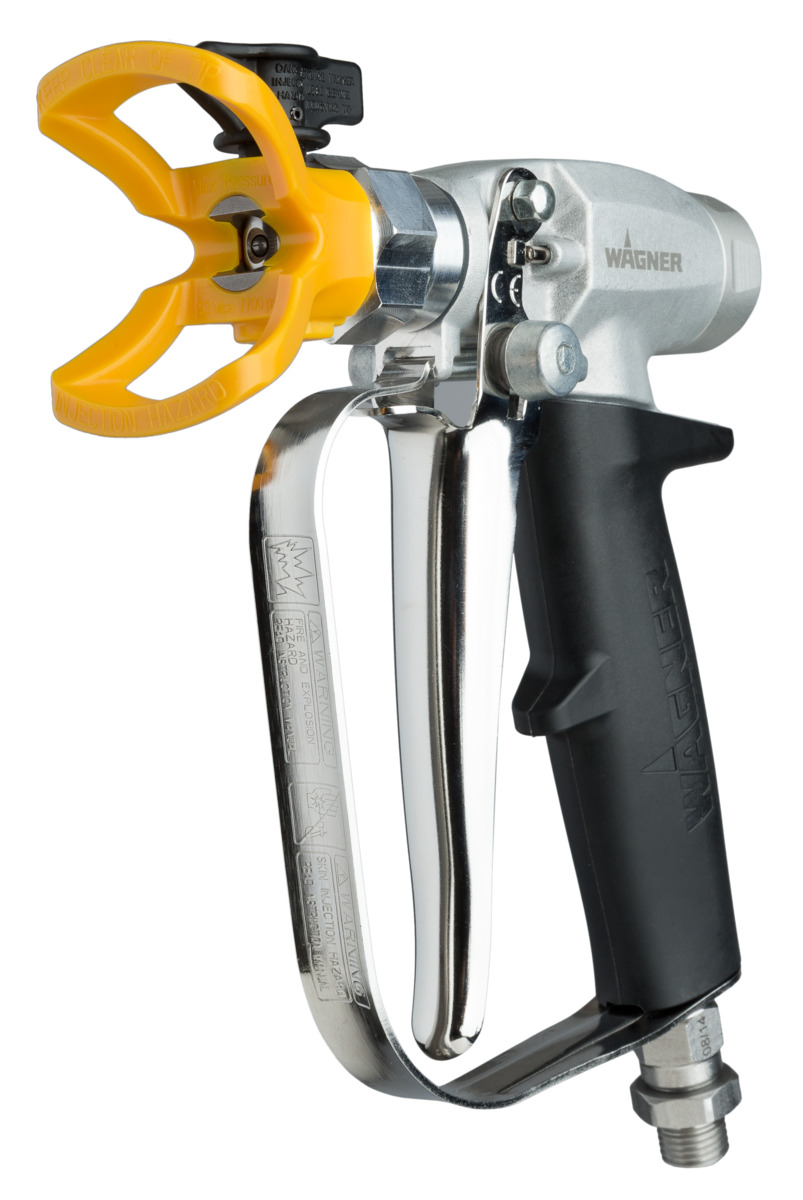

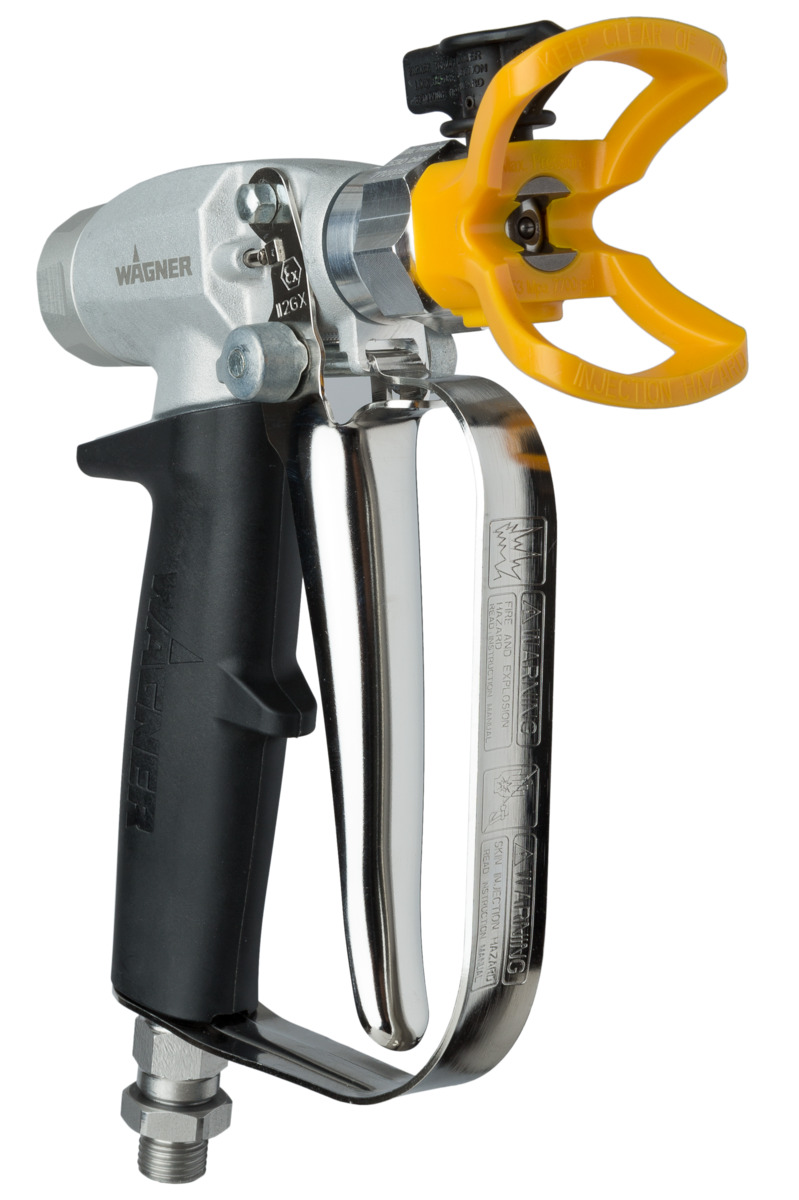

Wagner PROTEC GM1-350 Airless Gun

£289.00

Lightweight manual spray gun with demanding industrial capabilities.



For nozzles, see our range of Wagner PROTEC Airless Nozzles (556xxx). For all other accessories and tip sizes, enquire with us directly via the Contact Us page.

SKU: 2349286 Category: Tags: , Brand:

Description

The Wagner Protec GM1-350 (part no. 2349286) airless manual spray gun is perfect for applications in heavy-duty corrosion protection and other high-viscosity materials up to 350 bar. Great ergonomics give it a comfortable feel in practice. Low trigger and holding forces also make it fatigue-free over extended periods of use. Consistal housing, a protective trigger guard, and a robust design equip this gun for demanding industrial applications.





FAQs



What is the Wagner GM1-350 airless gun used for?



The Protec GM1-350 is a professional airless manual spray gun capable of delivering material up to 350 bar, making it effective in demanding industrial setups applying protective coatings or high-viscosity materials.





What type of material can it spray?



It sprays solvent-based and water-based coatings, including top coats, primers, corrosion protection, textured lacquers, clear lacquers, stains and release agents.





What nozzle size do I need?



Choose a bore size and fan width to suit your application. Larger bores offer more output on thicker material and a wider fan angle suits larger surfaces. Use Wagner’s rough guide to determine your favoured tip size, speak to your paint representative, or contact us for advice:

  • 11/30-11/40: clear lacquers, release agents, thin top coats
  • 13/20-15/40: top coats and standard primers, solvent or water-based
  • 17/20-19/60: epoxy primers, 2K corrosion protection paints
  • 21/20-25/40: zinc-rich paints, high-solid coatings, anti-fouling and texturising lacquers

Clear tip blockages by reversing the tip, reinserting, and flushing through.





Is there a complete list of spares and parts for the gun?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Flush the gun and check hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/protec-gm-1/

Technical specs

Weight0.56 kg
Application Area

Metal coating, protective coating

Application Technique

Airless

Processable Materials

Solvent and water-based material, Zinc rich paints, High solids, 2K corrosion protection colours, Anti-fouling coatings, Epoxy Primers

Material Wetted Parts

Aluminium, Stainless steel, Carbide, PTFE (polytetrafluoroethylene), UHMW-PE (ultra-high molecular weight polyethylene), POM (polyacetal)

Max. Material Pressure

350 bar

Max. Sound Level

85 dB(A)

Nozzle Size

0.007-0.065”

Material pH Value

3.5-9 pH
