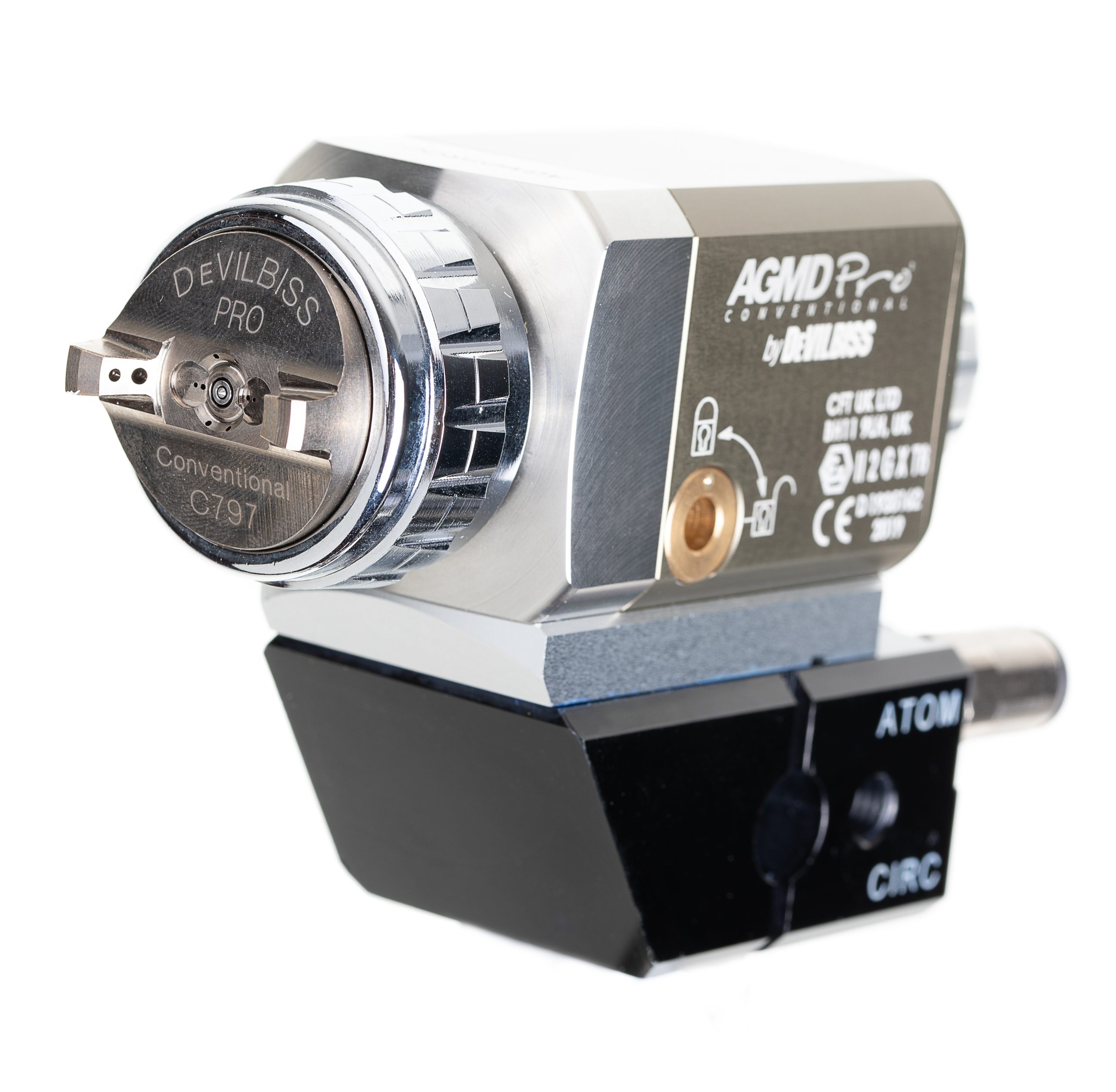

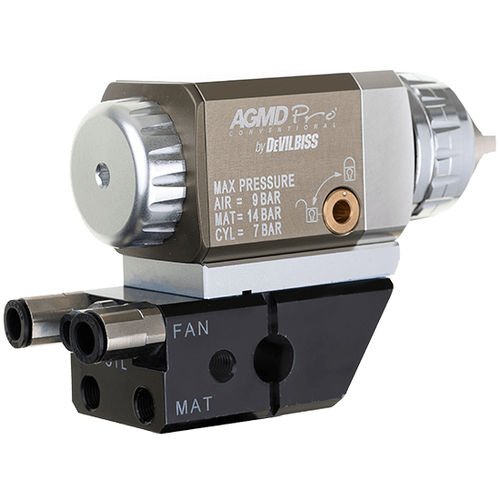

Binks DeVilbiss AGMD Pro Automatic Gun

£1,399.00

Ultra-compact automatic spray gun.



This version comes with a size 1.4mm fluid nozzle as standard, customise your product by choosing between a TE40 or TE50 air cap and stainless steel or plastic tipped needle. For other fluid nozzle sizes, enquire with us directly.



Available on back-order

Product total
Options total
Grand total
SKU: AGMDPRO-TE40-14 Category: Tag: Brand:

Description

The Binks DeVilbiss AGMD Pro (variant part no. AGMDPRO-TE40-14) automatic spray gun builds on proven DeVilbiss atomisation technology, and now includes improved maintenance and serviceability as standard. The innovative internal fluid passages facilitate efficient colour change and flushing cycles required in demanding high-quality finishing setups. Operators can configure the AGMD Pro for standard machine mount applications or adapt it for any standard robot, featuring a new radial clamping device with quick-release cam operation from either side of the gun. This advanced model improves transfer efficiency while significantly reducing air consumption, offering LVMP-compliant spray performance.





FAQs



What is the Binks DeVilbiss AGMD Pro automatic gun used for?



The Binks DeVilbiss AGMD Pro is compact, adaptable and offers high-transfer efficiency. This makes it effective in most automated production lines using reciprocators, machines, or robots, such as automotive or industrial spraying.





What type of material can it spray?



It sprays both water-based and solvent-based coatings but is not designed for highly corrosive or abrasive materials as this may cause the gun to wear more often. It must not be used with halogenated hydrocarbons such as 1,1,1-trichloroethane or methylene chloride, because they can react violently with aluminium parts.





What nozzle size do I need?



Fluid nozzles range from 0.5 mm to 2.2 mm. Smaller bores suit thin materials and fine finishes, while larger bores give more output on thicker materials. Nozzles and needles must be matched. Plastic-tipped needles are available for sizes up to 1.4 mm, and stainless steel needles cover the full range. Speak to your paint representative or contact us for advice.





Is there a complete list of spares and parts for the gun?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Check the air cap and needle daily, check hoses and body for damage or leaks regularly. We recommend annual servicing to inspect or replace wear parts, you can book this with us by contacting service@app-tec.co.uk.





Read more on the Binks website: https://binks.com/product/agmd-pro-automatic-gun/

Technical specs

Weight0.65 kg
Max. Air Input Pressure

12 bar

Max. Fluid Input/Reciprocation Pressure

15 bar

Cylinder Air Pressure

3.5-6 bar

Max. Ambient Operating Temperature

40 °C

Materials of Construction

Stainless Steel 303, Anodised aluminium, electroless nickel-plated brass, Acetal needle tip, Viton Extreme, Polyethylene

Air Inlet Size

1/8” BSP

Fluid Inlet Size

1/8” BSP

Cylinder Inlet

1/8” BSP

Weight

(gun only) 0.646kg, (gun & intermediate plate) 0.715kg, (gun, intermediate plate & machine adaptor) 0.960kg

Dimensions

120 x 46 x 46 mm
