Binks DeVilbiss DVX Manual Spray Gun

£549.00

Versatile low-pressure manual air spray gun



This version comes with a P2 air cap and size 1.4mm fluid nozzle as standard. For other fluid nozzle sizes and air cap variants, tips, and all other accessories, enquire with us directly.

SKU: DVXP-P2-14 Category: Tag: Brand:

Description

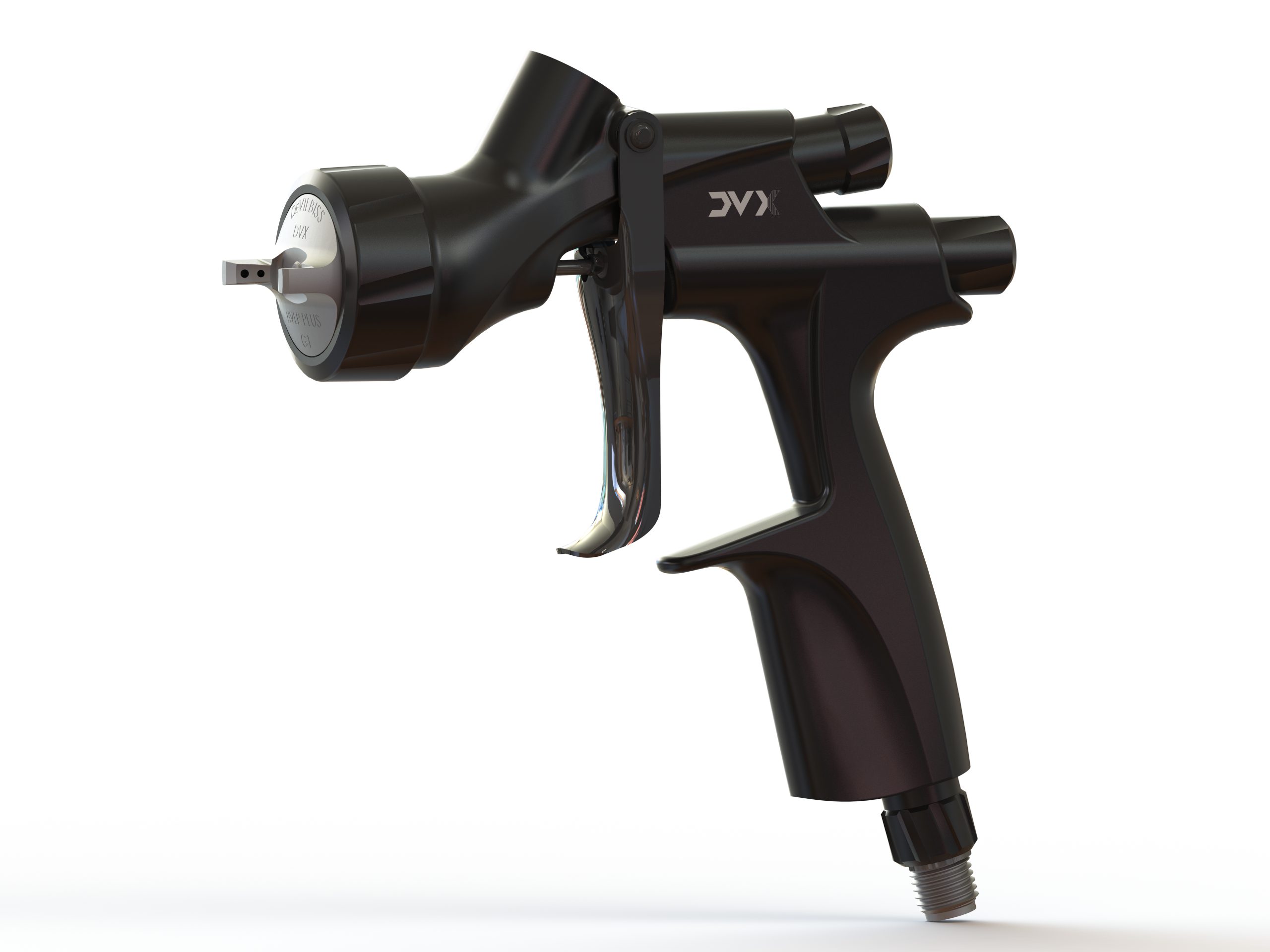

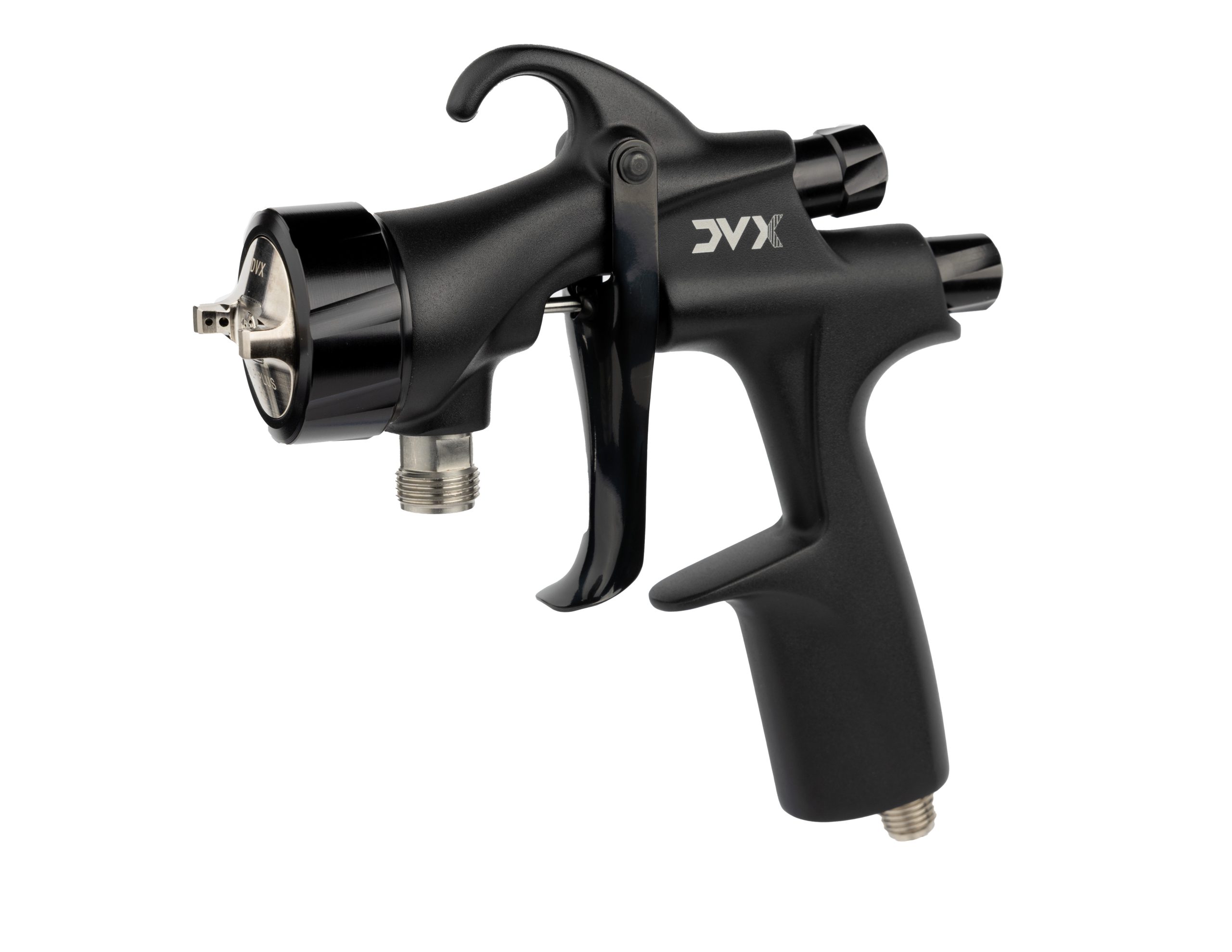

The Binks DeVilbiss DVX (variant part no. DVXP-P2-14) manual spray gun is their latest innovation in air spray technology. By redesigning the fluid and air cap, the gun mitigates turbulence between the paint and air while in operation. The result is higher flow rates for fast application and a higher transfer efficiency to reduce material use, whilst retaining a large, consistent spray pattern. It boasts a sleek, lightweight body that can handle a range of materials across 3 pressure air caps and 2 gravity air caps. The DVX gun excels at low-pressure air spray applications of both water-based and solvent-based materials, high-solid urethanes, epoxies, and enamels.





FAQs



What is the Binks DeVilbiss DVX manual spray gun used for?



The Binks DeVilbiss DVX manual gun is a professional grade, low-pressure applicator that can handle a range of material. Its HVLP air cap helps reduce overspray and improve transfer efficiency.





What type of material can it spray?



It sprays both water-based and solvent-based coatings but is not designed for highly corrosive or abrasive materials as this may cause the gun to wear more often. It must not be used with halogenated hydrocarbons such as 1,1,1-trichloroethane or methylene chloride, because they can react violently with aluminium parts.





What air cap and nozzle size do I need?



The DVX uses HVLP Plus air caps, which are available in P1, P2 and P3 variants. They run at a recommended 2 bar air inlet, use around 250–325L/min of air, and give fan patterns of roughly 330–380 mm at 200 mm distance. Choose your fluid nozzle to suit your material and the output you need. Smaller bores suit thin materials and fine finishes, and larger bores give more flow on thicker coatings.





Is there a complete list of spares and parts for the gun?



Yes. You can find the full, up-to-date operating manual with an exploded view and complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Check the air cap and needle daily, check hoses and body for damage or leaks regularly. We recommend annual servicing to inspect or replace wear parts, you can book this with us by contacting service@app-tec.co.uk.





Read more on the Binks website: https://binks.com/product/dvx-guns/

Technical specs

Weight0.487 kg
Max. Static Air Input Pressure

12 bar

Max. Fluid Input Pressure

15 bar

Vibration Level

<2.5 m/s²

Max. Ambient Operating Temperature

40 °C

Materials of Construction

Anodised aluminium, stainless steel, electroless nickel-plated brass, solvent-resistant material, chrome-plated steel

Fluid Inlet Size

3/8” BSP

Dimensions

161 x 166 x 44 mm
