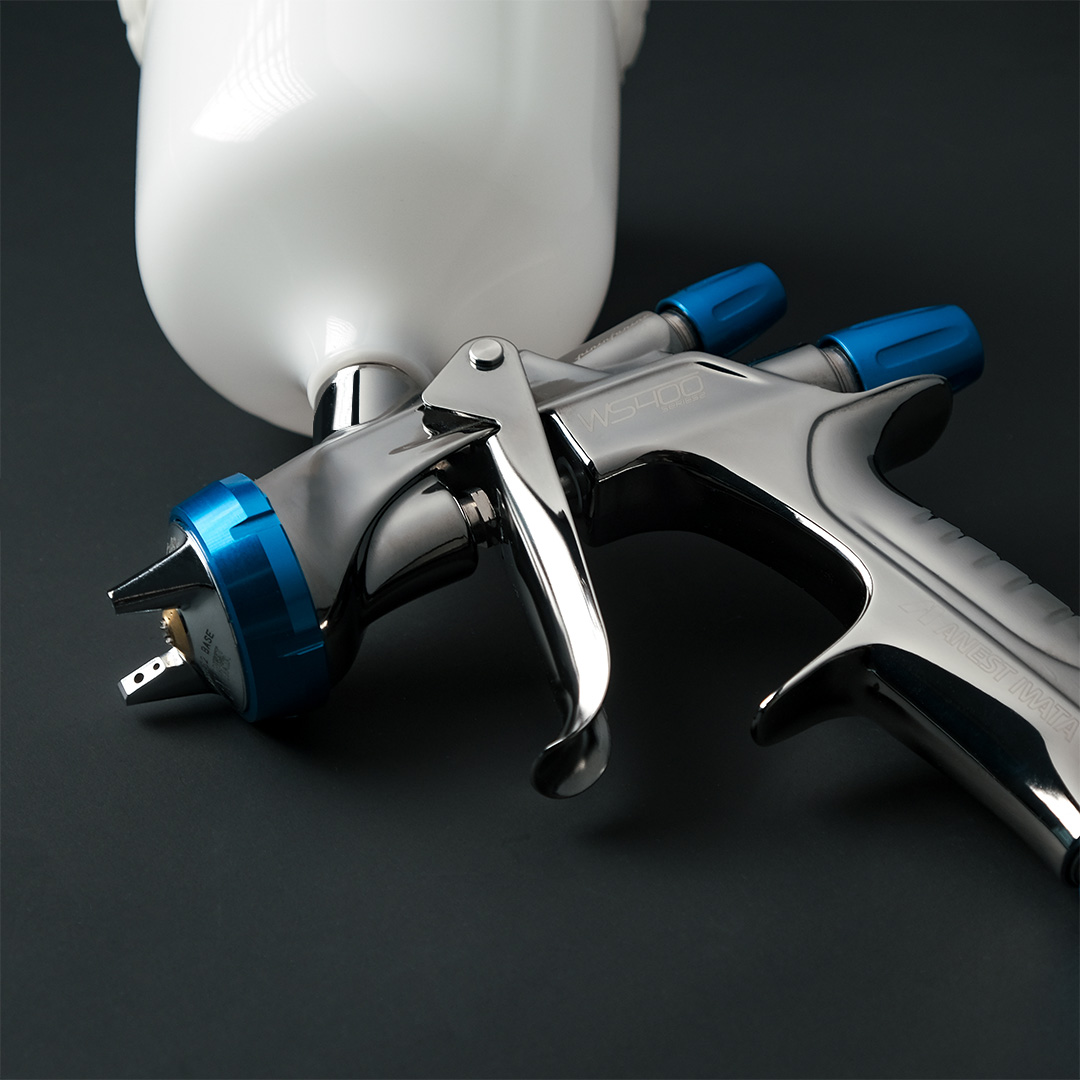

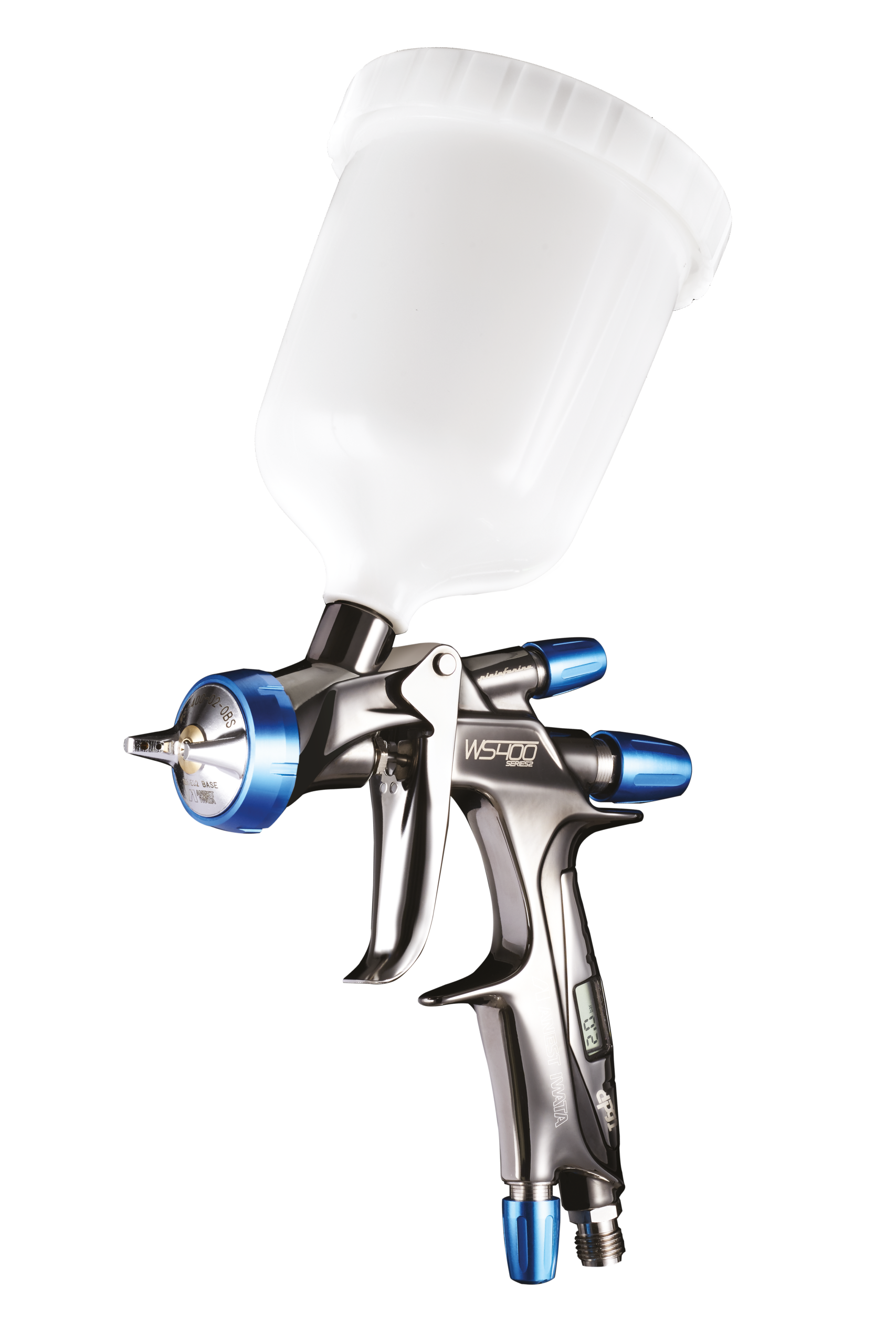

Anest Iwata WS400 Series 2 Manual Gun

Original price was: £419.00.Current price is: £399.00.

Precision HVLP gravity feed manual spray gun



We offer the digital clearcoat variant with size 1.4mm fluid nozzle as standard. For basecoat, non-digital, and other fluid nozzle size variants, kits, and all other accessories, enquire with us directly.

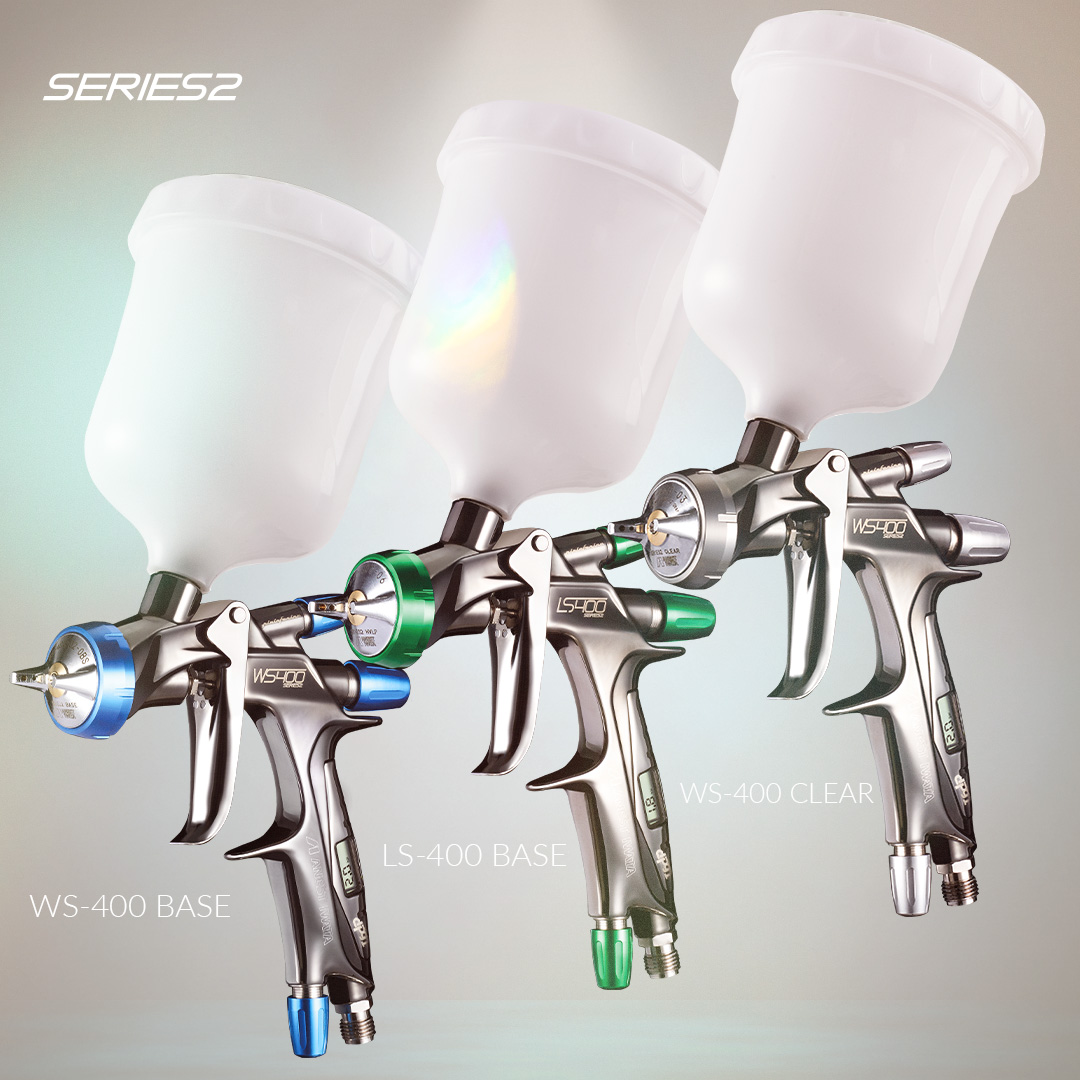

See also, the WS-400 Series 2.1



SKU: 130188A0 Category: Brand:

Description

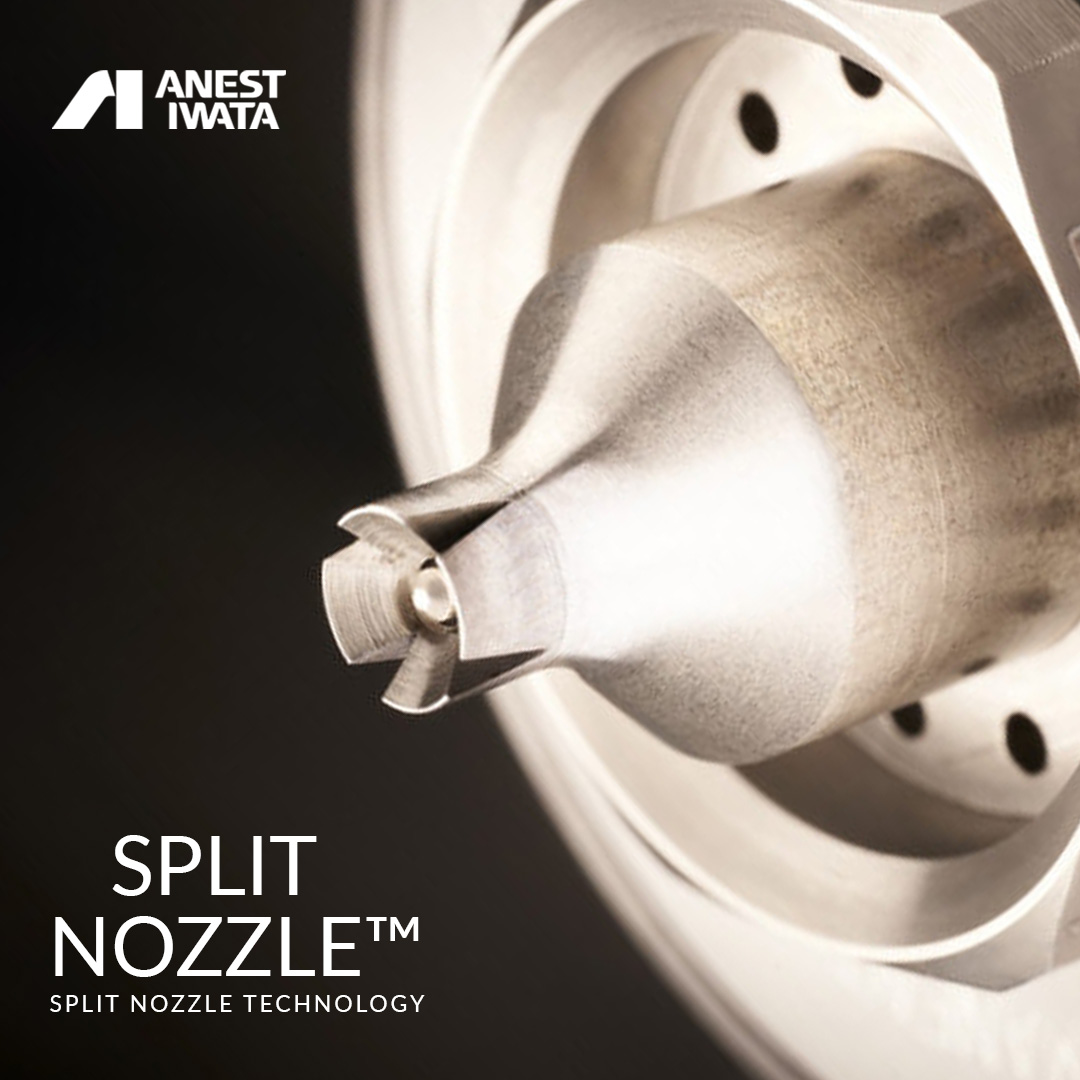

The Anest Iwata WS400 Series 2 spray gun delivers precision basecoat and clearcoat applications. Anest Iwata’s Split Nozzle 2.0 technology gives it industry-leading atomisation and finish quality, producing ultra-fine, uniform droplets. It operates with consistent, high-transfer finishes in water- or solvent-based materials. A refined trigger feel and optional digital pressure control give the Series 2 ergonomic balance, while a contoured, lightweight body boosts operator comfort and control through long spraying sessions. It suits automotive refinishing, custom paint shops, and other surface-finishing production work, optimising material usage and reducing rework and overspray.



This product has been succeeded by a newer model, read more on the Anest Iwata website: https://www.anest-iwata-coating.com/en/ws-400-series-21-clear-digital/

Technical specs

Weight.471 kg
Max. Working Pressure

10 bar

Compliant Max. Pressure (WS-400)

2 bar

Weight (digital model)

0.471kg

Noise Level

83.5 dB(A) at max. pressure

Air Connection

G ¼” M

Fluid Connection

G ¼” F

Digital Pressure Gauge Specs

nominal voltage = 3V, rated capacity = 140 mAh

Max. Temperature Range

5-40°C (atmosphere), 5-43°C (air/fluid)
