Wagner GM5000EAC Electrostatic Gun

£3,349.00

High-efficiency electrostatic manual spray gun.



This version is suitable for high-pressure AirCoat applications, for the low-pressure air spray version, see GM5000EA.



For nozzles, see our range of Wagner ACF5000 Electrostatic Nozzles (395xxx). For all other accessories and tip sizes, enquire with us directly.



Product total
Options total
Grand total
SKU: 2309871 Category: Tags: , Brand:

Description

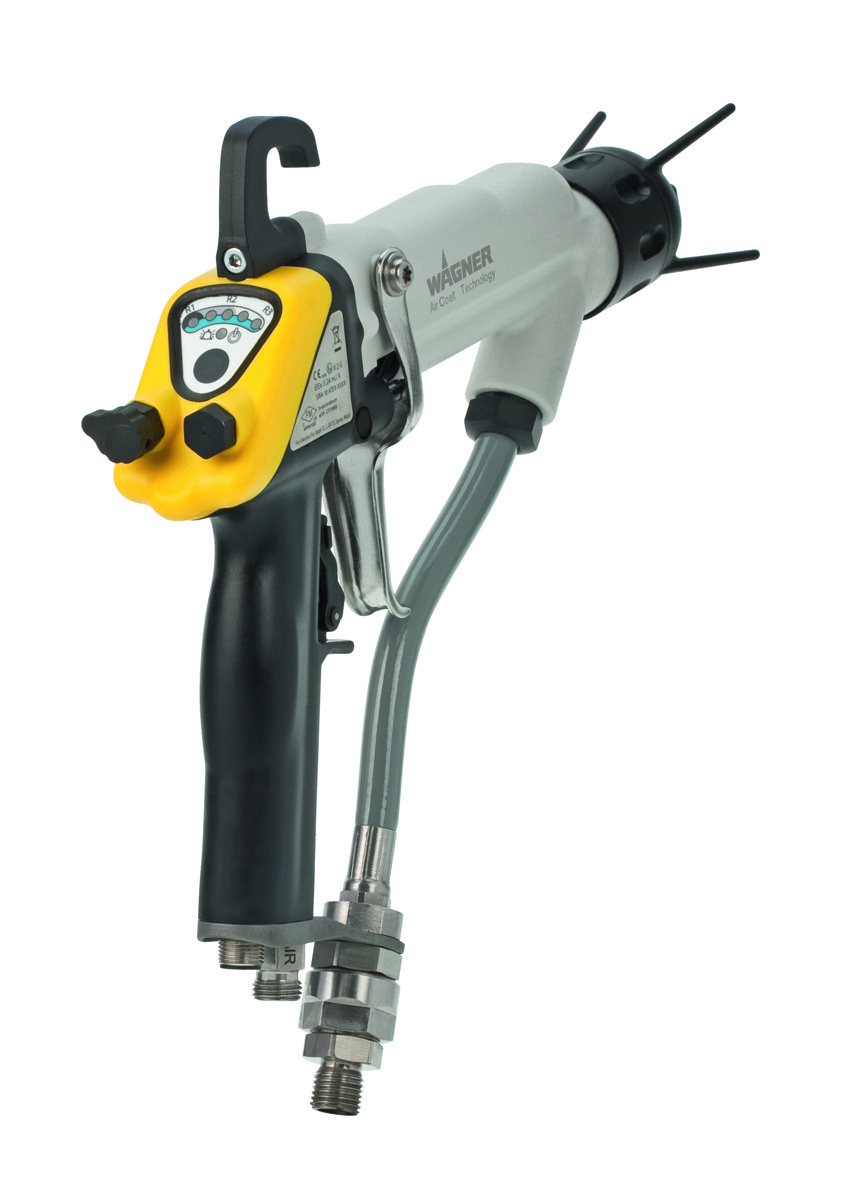

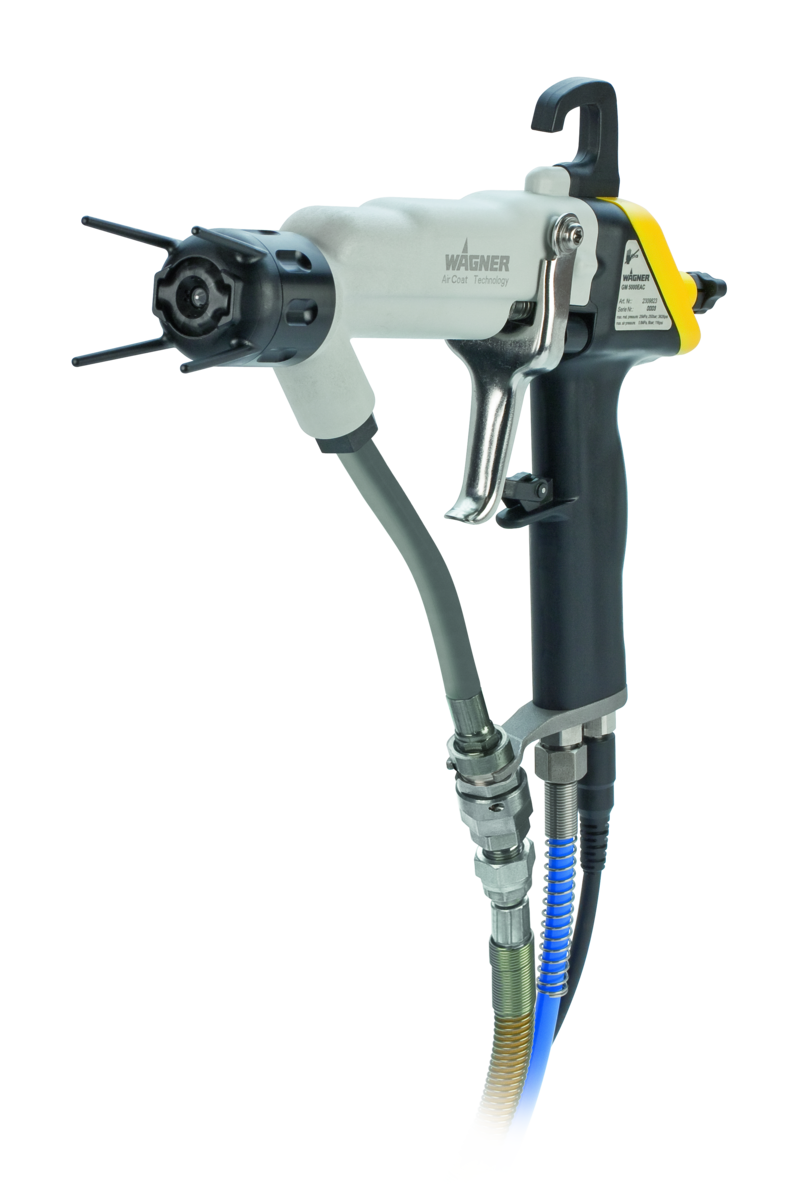

The Wagner GM5000EAC (part no. 2309871) electrostatic spray gun is an effective tool for electrostatic coating. Combining electrostatically charged spraying with AirCoat atomisation delivers the highest finish quality and outstanding application efficiency. The built-in high voltage cascade typically saves 30-50% of material compared with conventional coating. Wagner designed the GM5000 for flexible use in harsh environments and with a range of spray materials, because the electrostatic charge attracts paint to all exposed surfaces. The control unit monitors the gun’s grounding, and the high voltage switches off automatically as soon as the grounding is interrupted. The gun suits mass-production environments and works best with low-conductivity solvent paints.





FAQs



What is the Wagner GM5000EAC electrostatic gun used for?

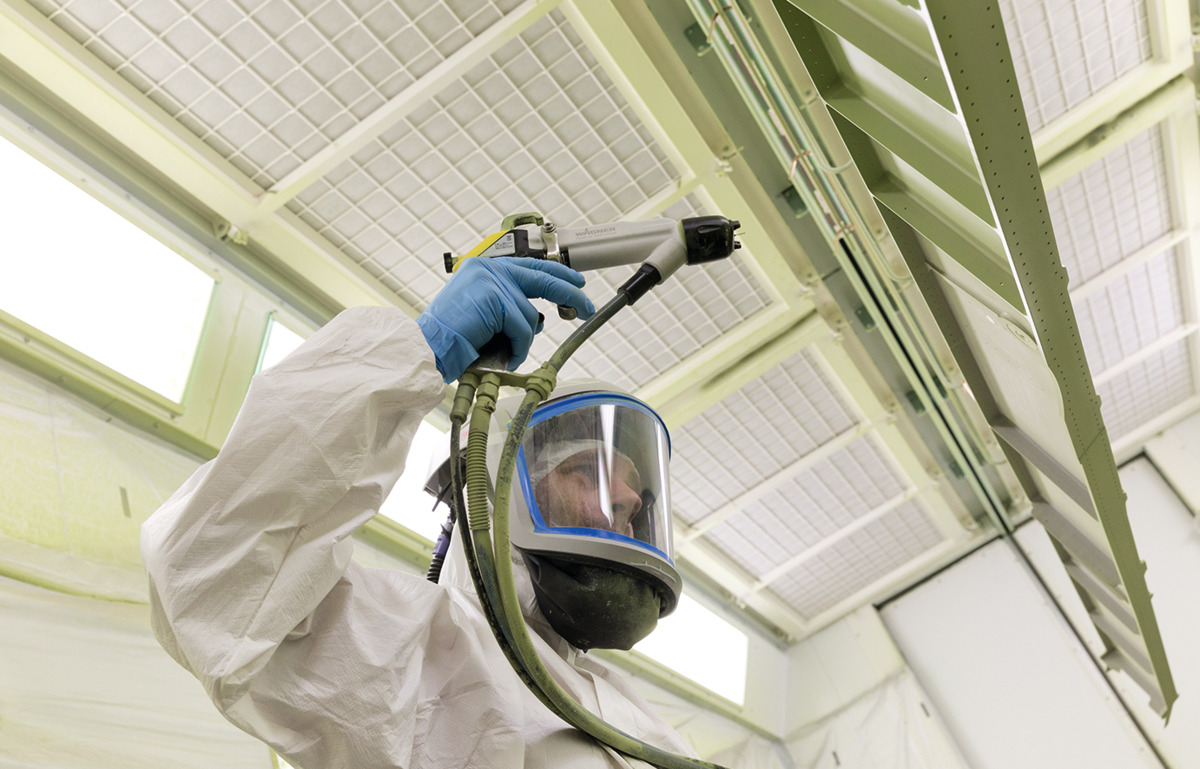

The GM5000EAC is a manual electrostatic spray gun that applies mainly solvent-based enamels in metal and wood finishing. It combines air-assisted airless (AirCoat) spraying with an electrostatic charge to create a wrap-around effect that covers the surface from all angles and reduces overspray, typically saving 30-50% of material compared with conventional spraying.





What type of material can it spray?



It is designed for low-conductivity solvent-based enamels, such as lacquers, base coats, primers, fillers, and anti-corrosion paints. It also processes abrasive, shear-sensitive, and moisture-sensitive materials. For best results, Wagner recommends that the material’s electrical resistance be above 150 kΩ.





What tip size do I need?



Choose a bore size and fan width to suit your application. Larger bores offer more output on thicker material and a wider fan angle suits larger surfaces. Use Wagner’s rough guide to determine your favoured tip size, speak to your paint representative, or contact us for advice:

  • 09/30-09/60: clear lacquer, oils
  • 11/10-11/80: synthetic resin lacquer, PVC lacquer
  • 13/10-13/80: paints, base coat, primer, filler
  • 15/30-15/50: filler, corrosion protection
  • 17/30-17/50: corrosion protection, latex paints

Clear tip blockages by reversing the tip, reinserting, and flushing through.

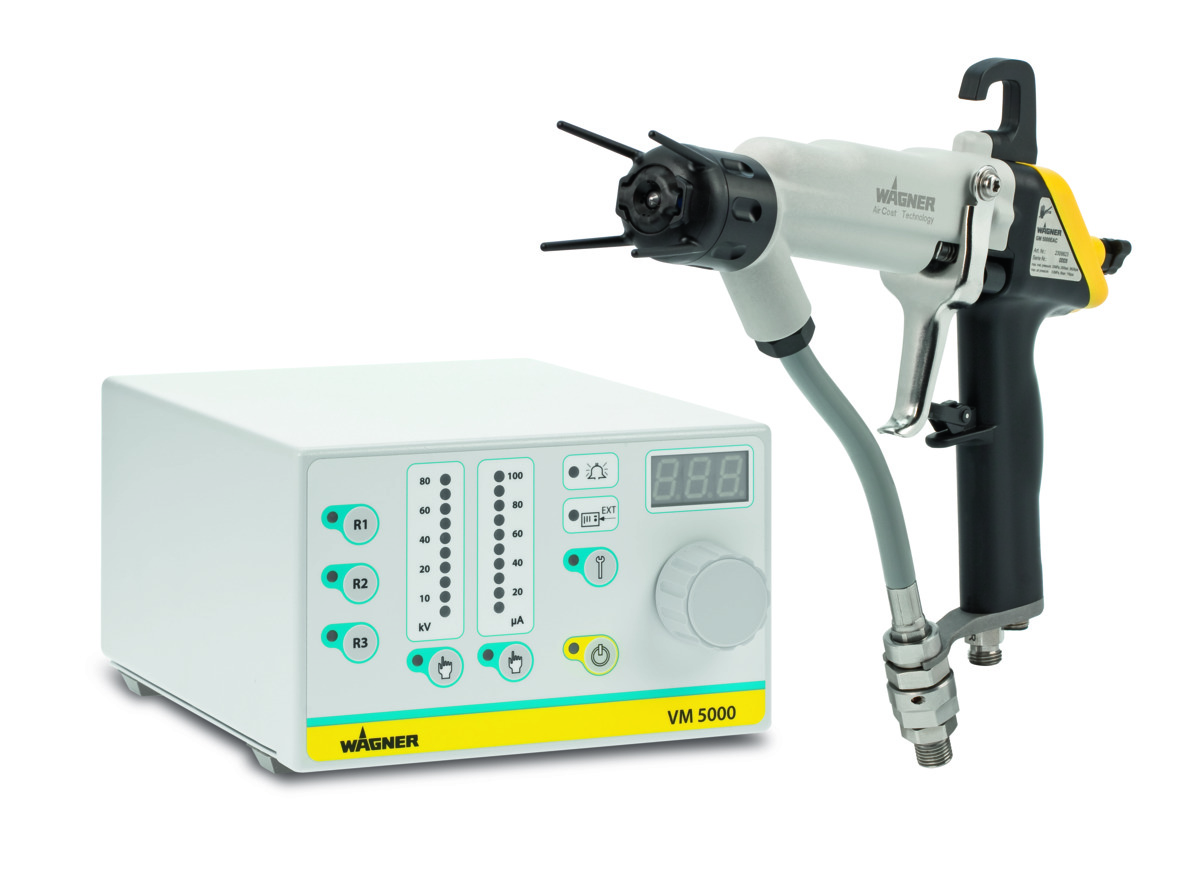

What is the difference between the VM500 & VM5000 Spraypacks?

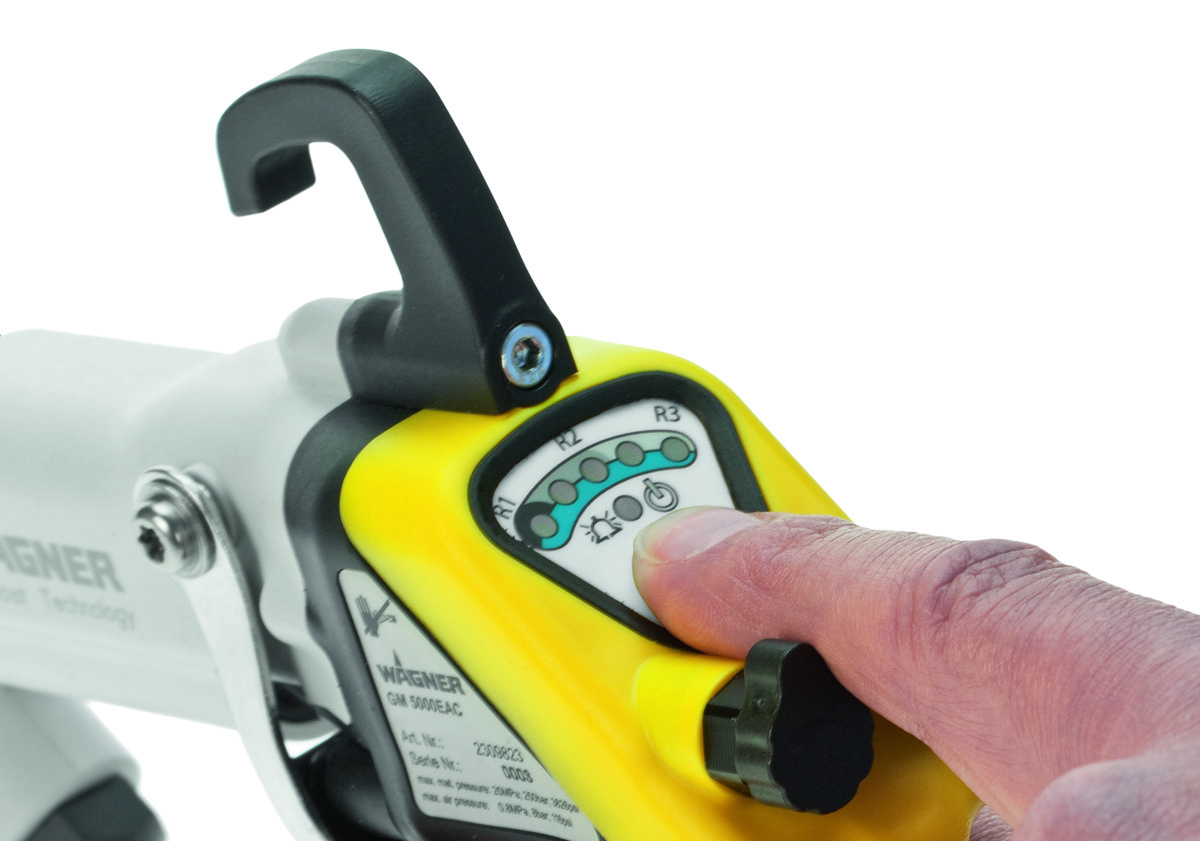

The VM500 controller supplies the electrostatic guns with 70 kV, as well as monitoring and safety shutdown. The VM5000 offers adjustable high voltage and pre-saved recipes for supplying the electrostatics, with much more functionality and control, while also monitoring and operator safety features. Both spraypacks include the controller, cable & 15m hose set, air cap, and tip.





Is there a complete list of spares and parts for the gun?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Flush the gun and check hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/gm-5000eac/

Technical specs

Weight0.71 kg
Application Area

Metal coating, wood coating

Application Technique

Airspray, Electrostatic solvent-based

Processable Materials

Abrasive, shear sensitive, sensitive to moisture

Material Wetted Parts

Stainless steel, Carbide, PA 12 (polyamide 12), PEEK (Polyetheretherketone), POM-C (Polyacetal Copolymer)

Compressed Air Connection

M G 1/4”

Max. Material Pressure

250 bar

Max. Sound Level

73 dB(A)

Operating Temperature

5-40 °C
