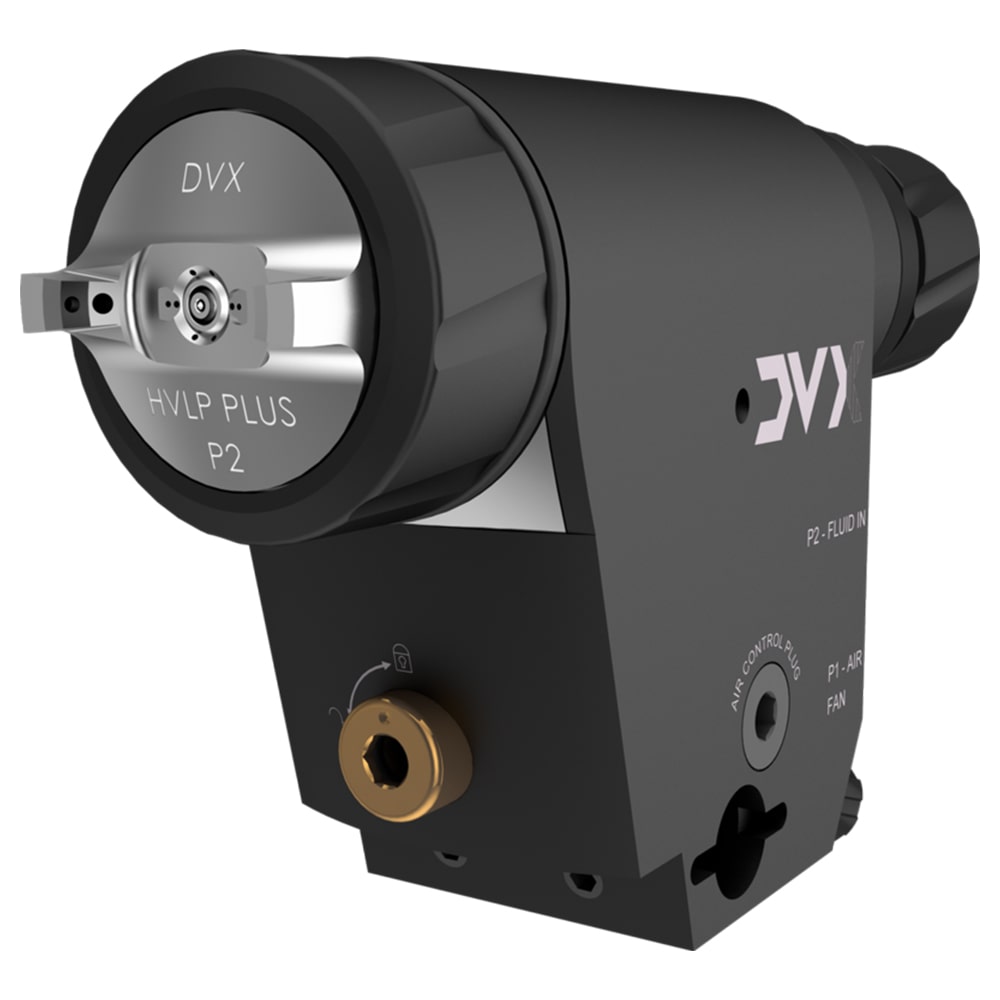

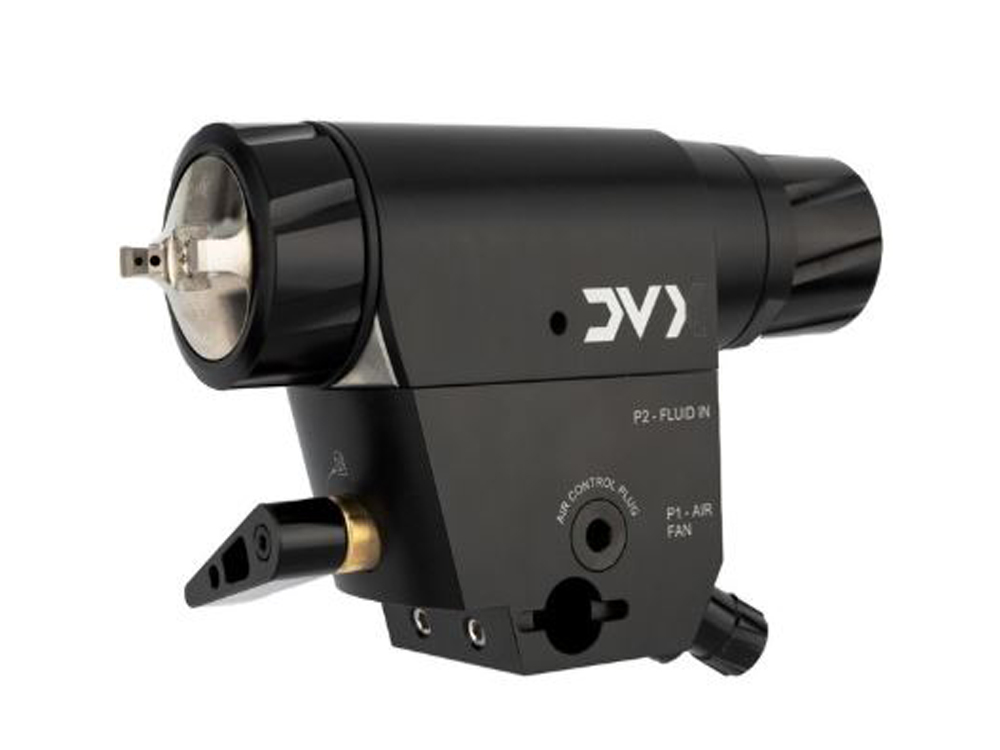

Binks DeVilbiss DVX Automatic Gun

£1,599.00

Versatile low-pressure automatic air spray gun



This version comes with a P2 air cap and size 1.4mm fluid nozzle as standard. For other fluid nozzle sizes and air cap variants, tips, and all other accessories, enquire with us directly.



Available on back-order

SKU: DVXA-P2-14N-BSP-F Category: Tag: Brand:

Description

The Binks DeVilbiss DVX automatic spray gun is their latest innovation in air spray technology. By redesigning the fluid and air cap, the gun mitigates turbulence between the paint and air while in operation. The result is higher flow rates for fast application and a higher transfer efficiency to reduce material use, whilst retaining a large, consistent spray pattern. It boasts a sleek, lightweight body that can handle a range of materials across 3 pressure air caps and 2 gravity air caps. The DVX gun excels at low-pressure air spray applications of both water-based and solvent-based materials, high-solid urethanes, epoxies, and enamels.





FAQs



What is the Binks DeVilbiss DVX Auto gun used for?



The Binks DeVilbiss DVX Automatic is a modular designed low-pressure automatic gun for machine and fixed mountings. It excels in most general industrial coatings on wood or metal.





What type of material can it spray?



It sprays both water-based and solvent-based coatings but is not designed for highly corrosive or abrasive materials as this may cause the gun to wear more often. It must not be used with halogenated hydrocarbons such as 1,1,1-trichloroethane or methylene chloride, because they can react violently with aluminium parts.





What air cap and nozzle size do I need?



The DVX Auto uses HVLP Plus air caps, which are available in P1, P2 and P3 variants. They run at a recommended 2 bar air inlet, use around 250–325L/min of air, and give fan patterns of roughly 330–380 mm at 200 mm distance. Choose your fluid nozzle to suit your material and the output you need. Smaller bores suit thin materials and fine finishes, and larger bores give more flow on thicker coatings.





Is there a complete list of spares and parts for the gun?



Yes. You can find the full, up-to-date operating manual with an exploded view and complete parts list in the datasheet downloads section of the product page.





How often does it need servicing?



Check the air cap and needle daily, check hoses and body for damage or leaks regularly. We recommend annual servicing to inspect or replace wear parts, you can book this with us by contacting service@app-tec.co.uk.





Read more on the Binks website: https://binks.com/product/dvx-automatic-gun/

Technical specs

Weight0.94 kg
Max. Air Input Pressure

7 bar

Max. Fluid Input Pressure

7 bar

Cylinder Air Pressure

407 bar

Max. Ambient Operating Temperature

40 °C

Materials of Construction

Stainless Steel, Quickclean coated aluminium, electroless nickel-plated brass, nitride coated stainless steel, HDPE, Viton Extreme, PTFE

Dimensions

127 x 97 x 44 mm

Datasheet downloads
