Wagner Puma 28-40 AirCoat Spraypack

£2,339.00

High-pressure piston pump for industrial coating applications. Trolley mounted with guns and hoses, ready to spray.



The Ready to Spray customisable Spraypack lets you choose your hose length, air cap, feed, and tip size. It also includes a Wagner GM4700AC manual spray gun and is trolley-mounted, ready to spray.



Product total
Options total
Grand total
SKU: 2335179AC Category: Tags: , , Brand:

Description

The Wagner Puma 28-40 (pump part no. 2329467) AirCoat Spraypack is a high-pressure piston pump specialised for AirCoat applications. It delivers smooth finishes on wood, plastic, and light metal surfaces. It combines a constantly uniform material flow with low pulsation to maximise surface finishing quality. IceBreaker technology also prevents icing throughout continuous use. The stainless-steel body processes both water-based and solvent-based materials, saving costs and increasing production efficiency. It suits medium-low viscosity paints, stains, primers, and standard industrial coatings on smaller production lines.





FAQs



What is the Wagner Puma 28-40 piston pump used for?



The pump runs in both airless and air-assisted airless setups, primarily applying industrial coatings to wood, plastic, and metal. This Spraypack uses Air-Assisted Airless (AirCoat) spraying for increased flow rates with controlled finishes.





What type of material can it spray?



It processes medium-low viscosity paints, stains, and primers, as well as moisture-sensitive materials.





What does the AirCoat Spraypack include?

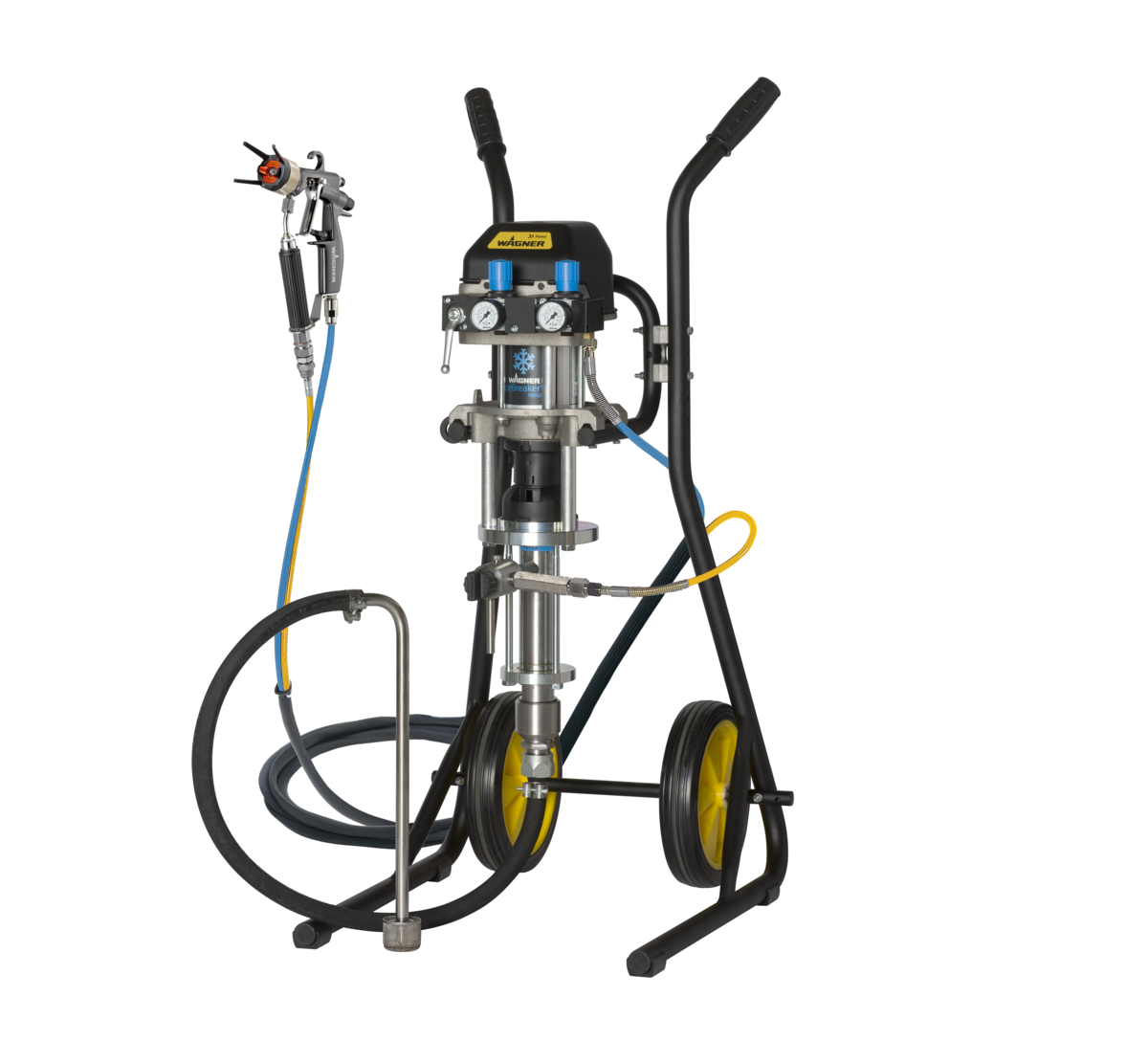

In the Puma 28-40 AirCoat Spraypack, you receive a cart mounted pump with a high-pressure twin hose set, Wagner GM4700AC spray gun equipped with an air cap and tip, as well as the choice of a suction hose or hopper to feed material.





Is there a complete list of spares and parts for the pump?



Yes. You can find the full, up-to-date operating manual with a complete parts list in the datasheet downloads section of the product page.





What air supply do I need?



The Puma 28-40 uses 8.3nl of air per double stroke at 6 bar, running at up to 60 strokes per minute. For continuous full-rate spraying, your air supply needs to deliver about 500nl/min. For lighter, single gun setups, an air supply delivering 300-350nl/min may be sufficient. Check with us for advice on your setup.





How often does it need servicing?



Check filters and hoses daily, with regular checks for damage or leaks. Wagner recommends annual servicing to replace wear parts, you can book this or any repairs with us by contacting service@app-tec.co.uk.





Read more on the Wagner website: https://www.wagner-group.com/uk/industry/products/liquid-coating/product/puma-28-40/



Technical specs

Weight18 kg
Application Area

Metal coating, wood coating, demolding and separating, adhesive bonding

Application Technique

Airless, AirCoat

Processable Materials

Water-borne, solvent-borne, sensitive to moisture

Material Wetted Parts

Stainless steel, Hard chrome, Carbide, PTFE (polytetrafluoroethylene), PA (polyamide)

Material Outlet

M M24x1.5

Compressed Air Connection

F G ½”

Air Inlet Pressure

2.5-8 bar

Max. Material Pressure

224 bar

Volumetric Flow per Double Stroke

40cm³

Volumetric Flow per Minute

2.4L/min

Max. Stroke Rate

60 1/min

Sound Level at 6 bar Pressure

74 dB(A)

Max. Allowed Inclination

10°

Transmission Ratio (:1)

28:1

Material pH Value

3.5-9 pH

Material Temperature

5-80 °C
