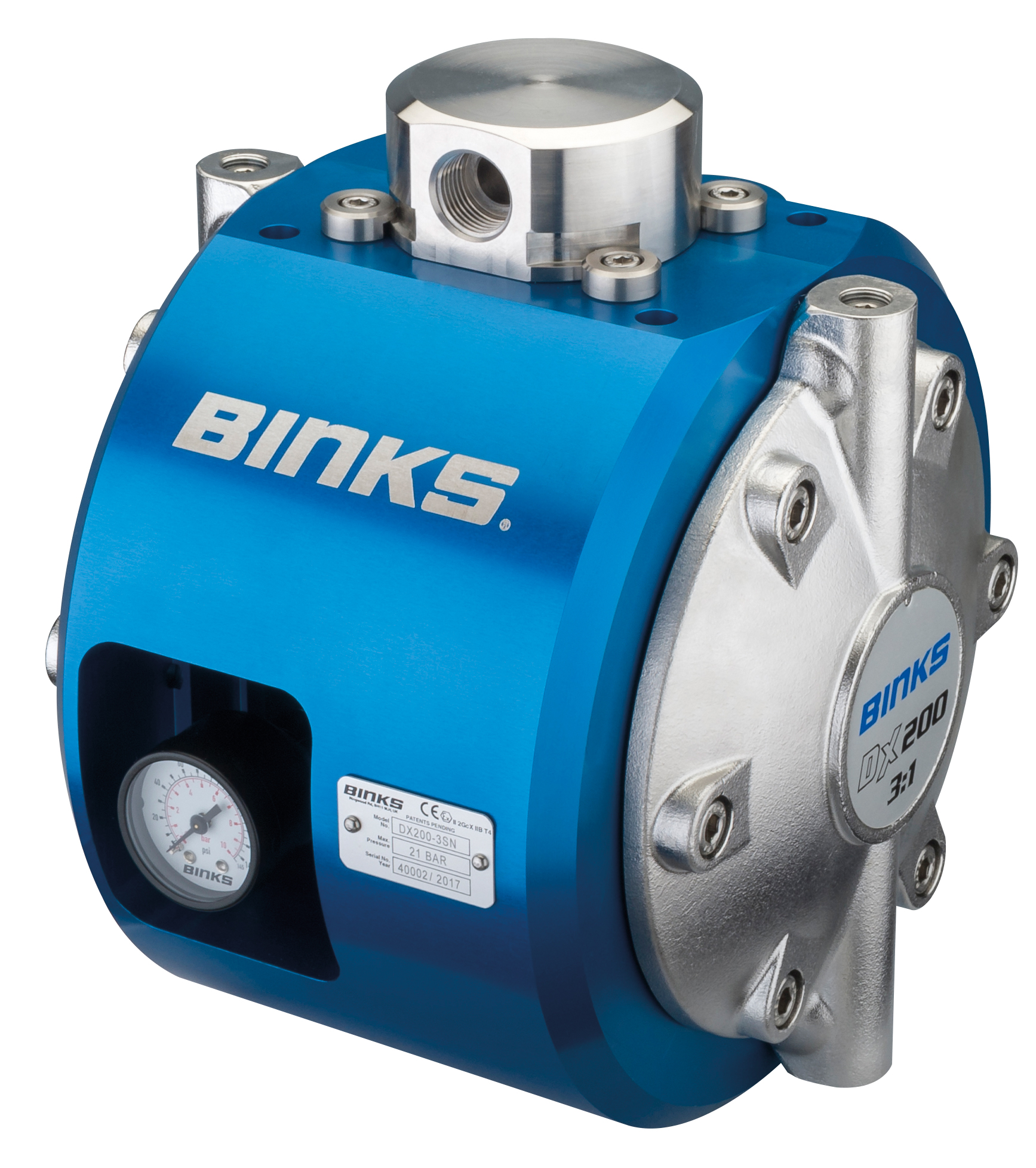

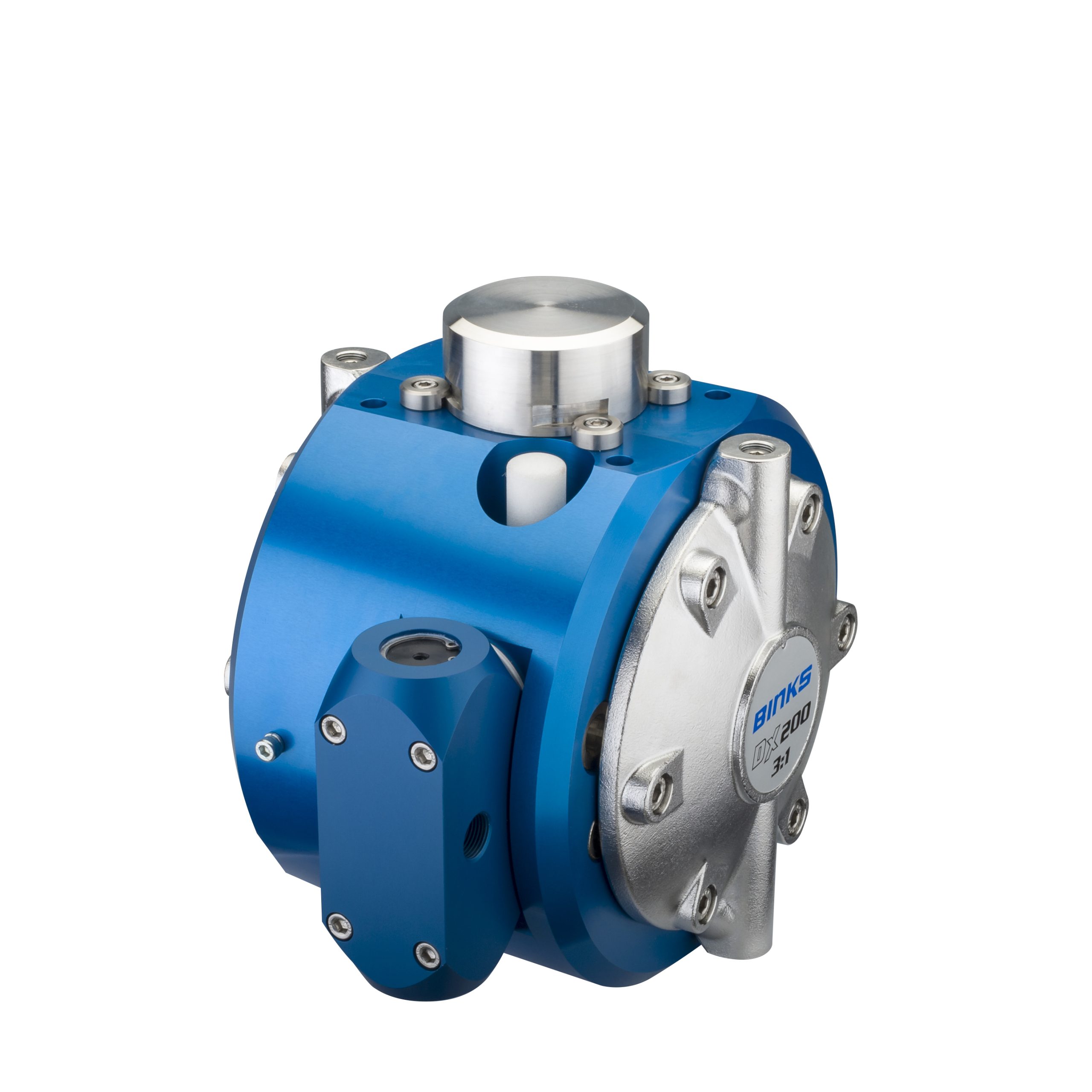

Binks DX200-3 Diaphragm Pump

£2,549.00

Robust high-pressure double diaphragm pump for demanding industrial applications



This product comes factory spec, a bare unit without any guns or hoses attached. For a complete set up, enquire with us directly.



Available on back-order

SKU: DX200-3SN Category: Brand:

Description

The Binks DX200-3 diaphragm pump, with its compact yet durable body, provides a highly reliable, low-maintenance option for any industrial finishing environment. Its low-pulse, double diaphragm design ensures consistent fluid delivery across the pressure range and leads to an ultra-high volume of fluid output and lower air consumption. It also features a high-performance air valve for rapid changeovers. Its unique diaphragm design inhibits creasing for longer working life, while minimal disassembly and exposure to key structural components make maintenance super easy. The pump operates quietly and smoothly, with a consistent spray across a broad spectrum of sensitive or aggressive materials, suitable for wood, glass, automotive, ceramic, or other industry applications.



Read more on the Binks website: https://binks.com/product/dx200-spray-packages/

Technical specs

Weight17.9 kg
Ratio

3:1

Max. Air Inlet Pressure

7 bar

Max. Fluid Pressure

21 bar

Displacement per cycle

0.14L

Output at 60 cycles

8.4L/min

Fluid Inlet Connection

½” BSPP F

Fluid Outlet Connection

½” BSPP F

Air Inlet Connection

3/8” Universal F

Max. Dry/wet Lift

6/9m

Noise Level at 40 cycles/min & 7 bar

79.8 db(A)
